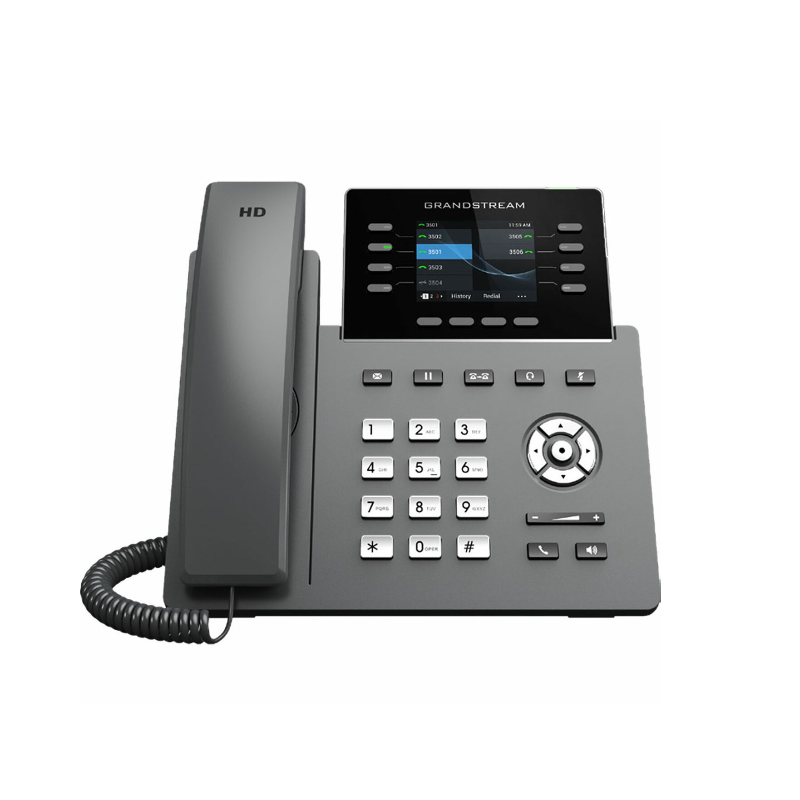

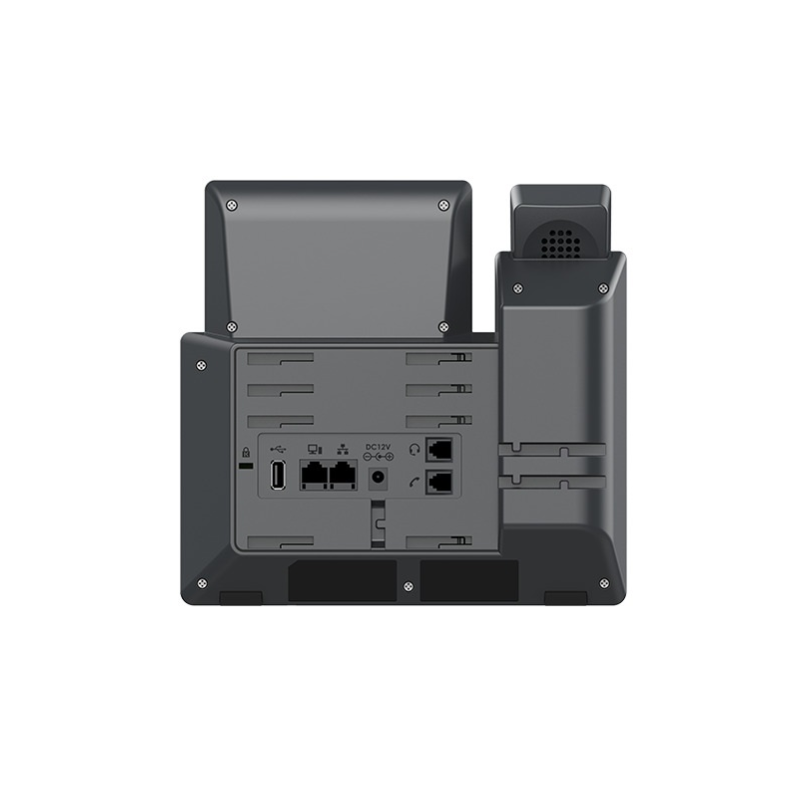

Grandstream GRP2624 8-Line Professional Carrier-Grade IP Phone

• Weight: 2.73 lbs

• Dimensions: 11.73 × 8.31 × 3.19 in

• Brand: Grandstream

• Phone Type: Desk, WiFi / WiFi Capable

Protocols/Standards:

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS,ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET,TFTP, NTP, STUN,SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6

Network Interfaces:

• Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE

Graphic Display:

• 2.8-inch (320×240) TFT color LCD

Wi-Fi:

• Yes, integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)

Bluetooth:

• Yes, integrated

Feature Keys:

• 8-line keys with up to 4 SIP accounts
• 4 XML programmable context sensitive softkeys
• 5 navigation/menu keys
• 9 dedicated function keys for: MESSAGE (with LED indicator)
• TRANSFER, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL

Auxiliary Port:

• RJ9 headset jack allowing EHS with Plantronics headsets
• USB to support Grandstream’s GUV Series headsets and other USB headsets

Voice Codecs and Capabilities:

• Support for G7.29A/B
• 711µ/a-law
• 726
• 722 (wide-band)
• G723
• iLBC
• OPUS
• In-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Telephony Features:

• Hold, transfer, forward
• 5-way conference, call park, call pickup
• Shared-call appearance (SCA)/bridged-line-appearance (BLA),
• Downloadable phonebook (XML, LDAP, up to 2000 items)
• Call waiting
• Call log (up to 2000 records)
• XML customization of screen
• Off-hook auto dial
• Auto answer
• Click-to-dial
• Flexible dial plan
• Hot-desking
• Personalized music ringtones and music on hold
• Server redundancy and fail-over

HD Audio:

• Yes, HD handset and speakerphone with support for wideband audio, and dual microphone.

Extension Module:

• Yes, GBX20

Base Stand:

• Yes, 2 angle positions available, Wall Mountable (Wall Mount *sold separately)

QoS:

• Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security:

• User and administrator level passwords
• MD5 and MD5-sess based authentication
• 256-bit AES encrypted configuration file
• SRTP
• TLS
• 1x media access control
• secure boot

Multi-language:

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and more

Upgrade/Provisioning:

• Firmware upgrade via FTP/TFTP / HTTP / HTTPS
• Mass provisioning using GDMS/TR069 or AES encrypted XML configuration file.

Power & Green Energy Efficiency:

• Universal power adapter included:
  • Input: 100-240V
  • Output: +12V, 1A
  • Integrated Power-over-Ethernet (802.3af)
  • Max power consumption 9.5W (power adapter) or 10.8W (PoE)

Temperature and Humidity:

• Operation: 0°C to 40°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Package Content:

• GRP2624 phone
• Handset with cord
• Phone stand
• 12V power adapter
• Network cable
• Quick Installation Guide
• GPL license

Physical:

• Dimension: 220mmx 210mmx 82mm
• Unit weight: 880g ; Package Weight:1260g

For a full list of specifications, please refer to the product datasheet.
