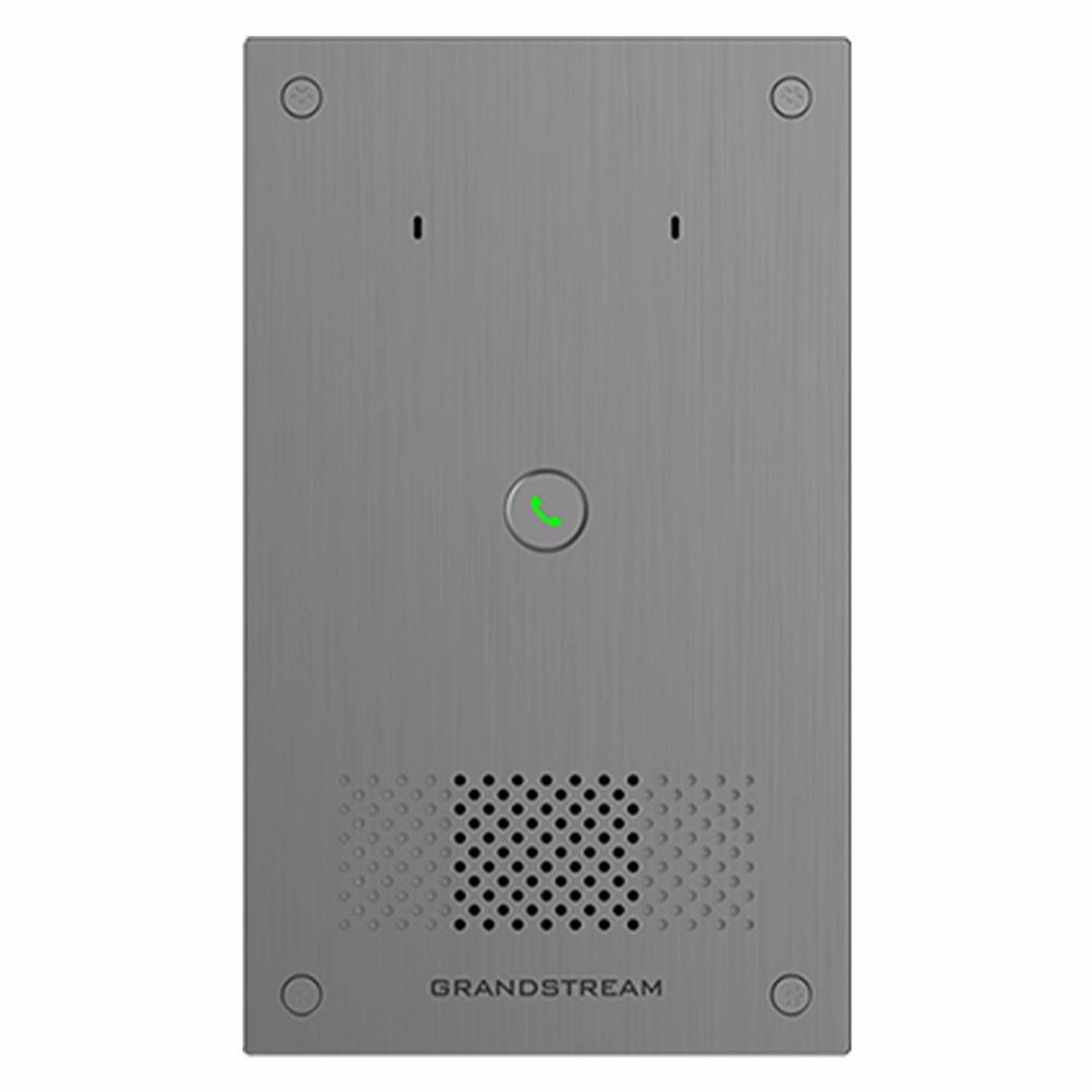

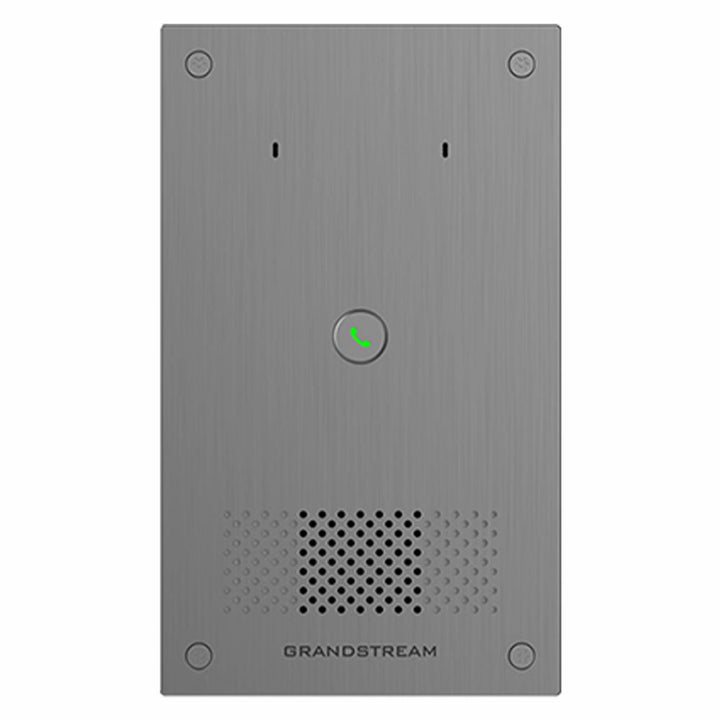

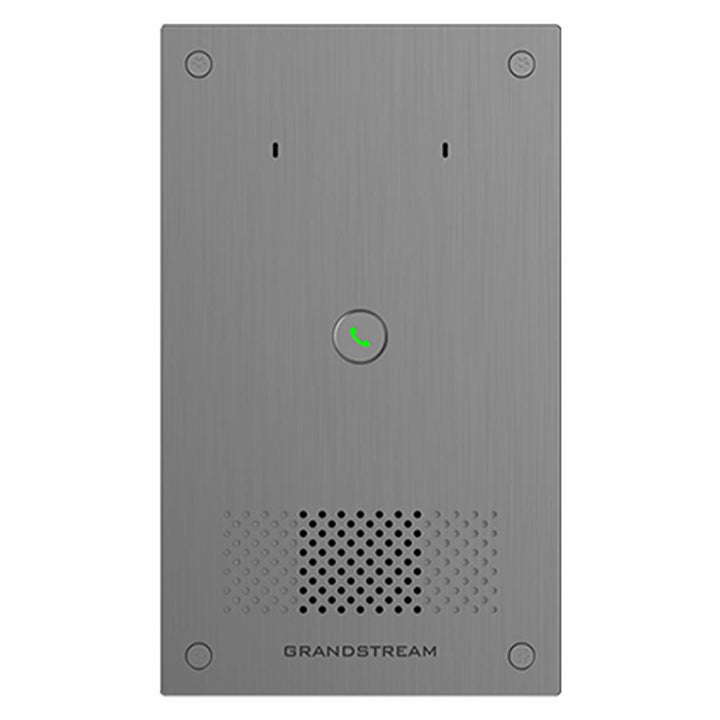

Grandstream GSC3565 Smart Outdoor Video Intercom
The Grandstream GSC3565 is an enterprise-grade Smart Outdoor Video Intercom designed to provide robust audio/video communication, access control, and security monitoring for demanding environments. Engineered for schools, residential communities, industrial facilities, and high-security zones, the GSC3565 combines a sleek, modern aesthetic with industrial-grade durability to deliver reliable 2-way communication and door control.
Built with a heavy-duty metal housing, the entire unit—including the camera lens area—is IP66 weatherproof and IK10 vandal-resistant rated. Featuring a 1/3″ 4 MP CMOS camera with 120 dB WDR and auto-adjusting white LED illumination, the GSC3565 captures crystal-clear 1080p video in any lighting condition. High-fidelity audio is powered by a dual-microphone array with a 6-meter pickup range and a powerful 10W speaker delivering up to 100 dB output for announcements. Equipping a solid-state relay (SSR) for anti-magnetic tamper protection, versatile I/O interfaces, and support for SIP, HTTP API, mobile app, and QR code unlocking, it integrates into any unified security network.
High-Performance Video & Audio Security
- 4 MP Camera with WDR & Night Vision: Features a 1/3″ 4 MP CMOS sensor with 1080p @ 30fps resolution, 120 dB Wide Dynamic Range (WDR), and 6 white LED supplement lights for clear video performance day or night.
- Ultra-Wide Field of View: Wide-angle lens provides a 127° Horizontal, 70° Vertical, and 152° Diagonal field of view to capture visitors clearly.
- High-Power Audio System: Integrated dual microphones provide up to 6 meters (19.68 ft) voice pickup, paired with a high-power 10-watt speaker capable of 90 dB for intercom and 100 dB for broadcast announcements.
Rugged Hardware & Flexible Integration
- IP66 & IK10 Vandal Proofing: Full metal casing with certified IP66 weather resistance and IK10 impact resistance across the whole body and lens area to operate reliably between -40°C and 70°C.
- Multiple Door Unlock Methods: Supports unlocking via SIP call, HTTP API, the Grandstream SecureAccess mobile app, and on-screen QR code scanning.
- Anti-Magnetic Solid State Relay (SSR): Includes 2-channel relay outputs (including NO2/COM2/NC2 anti-magnetic SSR) to protect high-security lock connections against external magnetic tampering.
- Comprehensive I/O Terminals: Equipped with 2x Alarm Inputs, Line-Out audio port (for external speakers/induction loops), RS-485, and a MicroSD card slot (up to 256 GB) for local recording.
- Cloud & Smart System Support: Centrally manage endpoints via local Web UI, GDMS Cloud / GDMS SecureAccess, or integrate with Home Assistant platforms.
Technical Specifications of Grandstream GSC3565 Outdoor Video Intercom:
| Feature | Specification |
|---|---|
| Camera Sensor | 1/3″ 4 MP CMOS with 120 dB WDR Support |
| Video Resolution & Frame Rate | 1920 × 1080 @ 30 fps (H.264 High/Main/Base Profile, MJPEG) |
| Field of View (FOV) | 127° Horizontal / 70° Vertical / 152° Diagonal |
| Light Supplement | 6x White LEDs (Auto-brightness adjustment) |
| Audio Hardware | Dual-mic array (6m / 19.68ft pickup) + 10W speaker (100 dB broadcast) |
| Unlock Methods | SIP, HTTP API, Grandstream SecureAccess App, QR Code |
| Network & PoE Ports | 1× 10/100 Mbps RJ45 Port with IEEE 802.3at PoE+ (Class 4) |
| I/O & Relay Interfaces | 2x Alarm Inputs, 2x Relay Outputs (1x Anti-Magnetic SSR), 1x Line-Out, 1x RS-485 |
| Local Storage | 1x MicroSD / TF Card Slot (Supports up to 256 GB) |
| Protection Rating & Temp | IP66 Weatherproof, IK10 Vandal-Proof (-40°C to 70°C Operating Temp) |
| Power Options | IEEE 802.3at PoE+ or 12–48 V DC / 2A (24W) Terminal |
What's included in the package of Grandstream GSC3565 Outdoor Video Intercom:
- Grandstream GSC3565 Smart Outdoor Video Intercom
- Ground Wire
- Installation Screws & Accessories (Expansion Bolts, Tapping Screws, Machine Screws, Screwdriver, Silicone Plug)
- Wall Mounting Position Sticker
- Quick Installation Guide
For a full list of specifications, please refer to the Grandstream GSC3565 Outdoor Video Intercom Datasheet.
