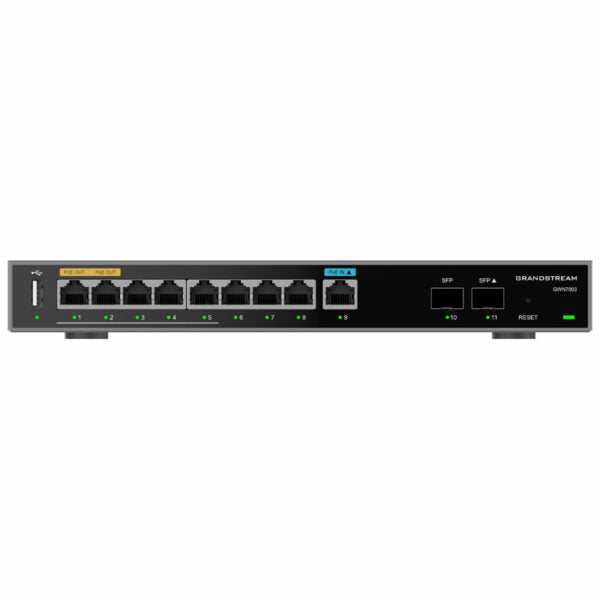

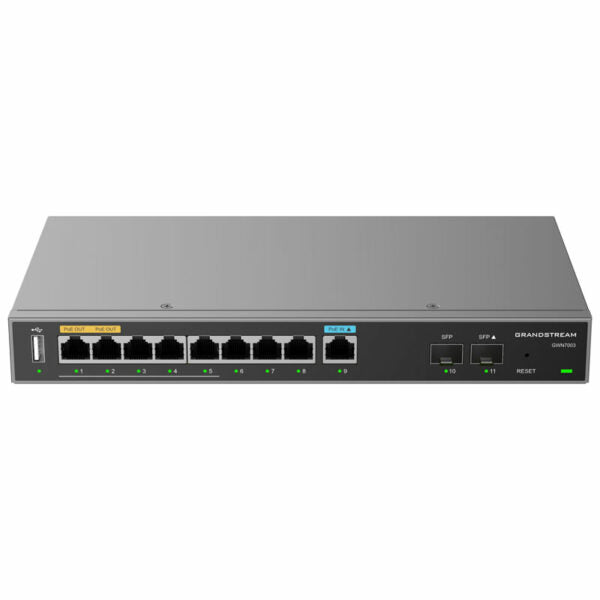

Grandstream GWN7003 Multi-WAN Gigabit VPN Wired Router, 9xGigE, 2xSFP

Grandstream GWN7003 are Multi-WAN Gigabit VPN routers with built-in firewalls that allow businesses to build comprehensive wired, wireless and VPN networks for one or many locations. They offer high-performance routing and switching power along with built-in VPN support for secure in-office and inter office connectivity. To provide enterprise-grade security protection and ensure stable network operation, the GWN 7001/7002/7003 features a built-in firewall with advanced content security, filtering, threat detection, attack prevention and more. To maximize network reliability, they support traffic load balancing, failover and bandwidth management capabilities. The GWN7001 includes 6 Gigabit ethernet ports.The GWN7002/7003 include 2 Gigabit SFP ports, 4/9 Gigabit ethernet ports, and 2 PoE output ports that allow them to provide power to other endpoints. These routers can manage themselves and up to 150 Grandstream GWN Series Wi-Fi APs thanks to an embedded controller located in the products’ web user interface. These routers can also be managed with GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise network management tools. By providing high-performance routing, VPN support, powerful security protection and easy-to-use network management tools, the GWN Gigabit VPN routers are ideal for a wide variety of deployments including small-to- medium businesses, retail, education, hospitality, healthcare and more.

Features:

• 9 x GigE LAN/WAN (2 x PoE Out)

• 2x 2.5 Gigabit SFP

• Supports multiple Gigabit RJ45 ports and Gigabit SFP ports

• Built-in VPN support allows easy access to corporate networks for remote employees

• Multiple WAN ports with load balancing and failover to maximize connection reliability

• Rich firewall features including DDNS, port forwarding, DMZ, UPnP, Anti-Dos, traffic rules, NAT and ALG

• Supports application/ protocol monitoring and traffic statistics with Deep Packet Inspection (DPI)

• Advanced QoS to ensure real-time performance of low-latency applications

• Supports application, URL,DNS, and web content filtering to block access from unsecure contents

• Embedded controller can manage itself and up to 150 GWN APs; GWN.
  Cloud offers a free cloud management platform for unlimited routers and GWN APs

• Supports TURN service with IP PBX to quickly achieve NAT traversal

Additional Information:

• Weight: 3.18 lbs

• Dimensions: 11.69 × 10.06 × 2.13 in

• Brand: Grandstream

• Business Router: VPN Routers

• Network Type: Wired

• Form Factor: Desktop

• WAN Failover: Yes

Technical Specifications:

• Model: GWN7003
• Box Contents:
  • GWN7003 Router
  • Universal Power Supply
  • Network Cable
  • Quick Installation Guide
  • 8 x screws
  • 1 x ground wire
  • 2 x mounting brackets
• CPU:
  • Dual ARM Cortex A53 1GHz
• Memory and NAT Sessions:
  • 512MB RAM, 256MB Flash, 60K NAT sessions
• Network Interfaces:
  • 2x 2.5 Gigabit SFP ports and 9x Gigabit Ethernet ports
    *All ports support WAN/LAN configurable
• NAT Throughput: 2.2Gbps
• IPsec VPN Throughput: 530Mbps
• Auxiliary Ports: 1x USB 2.0 port, 1x Reset Pinhole
• Mounting: Desktop and wall mounting
• LEDs: 13x single-color LEDs for device tracking and status indication
• Connection Type: DHCP, Static IP, PPPoE, PPTP, L2TP
• Network Protocols:
  • IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab
• QoS:
  • VLAN, TOS
  • Support multiple traffic classes, filter by port, IP address, DSCP, and policing
  • App Qos
  • VoIP Prioritization
• Firewall:
  • DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG, TURN Service
• Security:
  • Application/protocol monitoring and traffic statistics
  • Content filtering: Supports Application/URL/DNS/Web Content Filtering
  • Safe search
• VPN:
  • IPsec VPN Client-to-Site / Site-to-Site
  • PPTP VPN Server / Client
  • L2TP Client-to-Site
  • OpenVPN® Server / Client
  • WireGuard®
  • IPSec Encryption: DES, 3DES, AES
  • IPSec Authentication: MD5, SHA-1, SHA2-256
  • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
  • IPSec Protocols: ESP
  • IPSec NAT Traversal
  • OpenVPN® Encryption: AES, DES
  • OpenVPN® Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
  • OpenVPN® Certificate: RSA
  • PPTP Encrpytion: MPPE 40-bit, 128-bit, IPSec
  • PPTP/L2TP Authentication: MS-CHAPv1/2
• Max Concurrent VPN Tunnels:
  • Up to 100 Tunnels
• Network Management:
  • GWN7003 embedded controller can manage itself and up to 150 GWN APs
  • GWN.Cloud offers a free cloud management platform for unlimited GWN Routers and GWN APs.
• PoE Input: Standard: IEEE 802.3af/at
• PoE Output:
  • 2x PoE out ports Passive 48V or IEEE802.3af
• PoE Power Budget:
  • 24V DC 1A: 12.8W
  • 24V DC 1.5A: 24.8W
• Power & Green Energy Efficiency:
  • Universal power adaptor included:
    • Input: 100-240VAC 50-60Hz
    • Output: 24V DC 1A (24W)
• Environmental:
  • Operation: 0°C to 40°C
  • Storage: -30°C to 60°C
  • Humidity: 10% to 90% Non-condensing
• Compliance:
  • FCC, CE, RCM, IC, UKCA

For a full list of specifications, please refer to the product datasheet.
