Grandstream
![]()
![]()
![]()
![]()

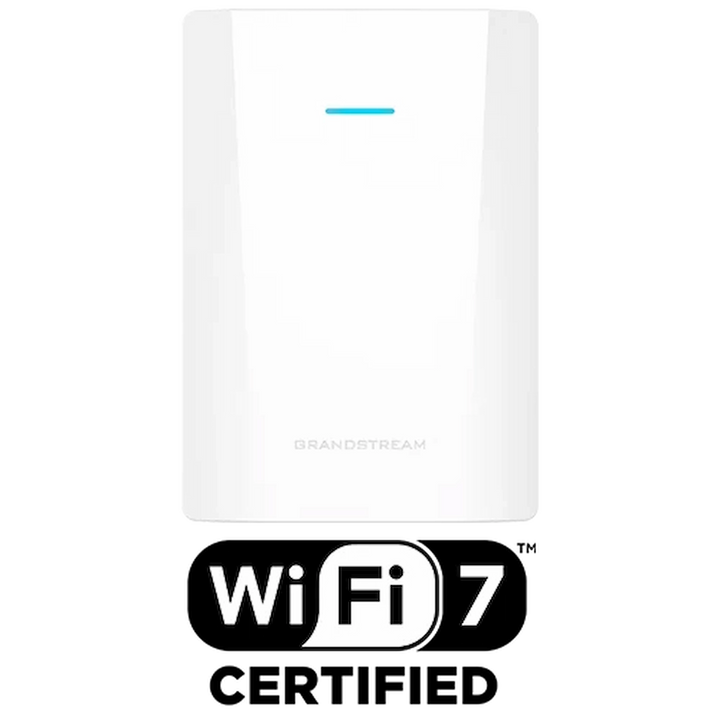

Grandstream GWN7672WM Wall-Mounted Tri-Band Wi-Fi 7 Access Point
Product SKU: GSGWN7672WM
Available:
Only 12 items in stock
12 items in stock
In stock
Out of stock
Back in stock
The Grandstream GWN7672WM is an enterprise-grade BE11000 tri-band Wi-Fi 7 wall-mounted access point designed for high-density networking environments.
Featuring an elegant, paintable front cover that seamlessly blends into any modern commercial or residential aesthetic, the GWN7672WM combines ultra-fast wireless throughput with versatile mounting options, including in-wall, on-wall, and junction box installations.
Equipped with 2x2:2 MU-MIMO across 2.4 GHz, 5 GHz, and 6 GHz bands, the GWN7672WM delivers up to 11 Gbps aggregate wireless speed and a 5 GbE PoE+ wired uplink for maximum performance.
Advanced Wi-Fi 7 Wireless & Wired Performance
- BE11000 Tri-Band Performance: Delivers wireless speeds up to 5,765 Mbps on 6 GHz, 4,320 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.
- 5 GbE PoE+ Wired Uplink: Includes a 5 Gigabit Ethernet RJ45 port with Power over Ethernet (802.3at PoE+) support for high-speed connectivity.
- Wi-Fi 7 Core Features: Supports Multi-Link Operation (MLO), 4096-QAM, 320 MHz channel width, and Preamble Puncturing for minimal latency.
- High-Density Client Capacity: Supports up to 384 concurrent wireless devices with a coverage range of up to 175 meters (574 ft).
Flexible Mounting & Enterprise Management
- Paintable Front Cover: Customizable exterior allows the AP to match any room design or wall color seamlessly.
- Versatile In-Wall & On-Wall Installation: Fits standard junction boxes, in-wall setups, or surface wall mounts out of the box.
- Flexible Network Control: Manage locally via embedded Web UI (up to 50 local APs), or centrally using free GDMS Networking cloud or GWN Manager.
- Enterprise Security: Built-in anti-hacking secure boot, digital signature lockdowns, and support for up to 2,500 PPSK accounts.
Technical Specifications & Package Contents
Technical Specifications of Grandstream GWN7672WM
| Feature | Specification |
|---|---|
| Product Model | Grandstream GWN7672WM |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11a/b/g/n/ac/ax/be) |
| Aggregate Wireless Throughput | Up to 11 Gbps (BE11000) |
| Frequency Bands & Rates | 2.4 GHz (688 Mbps), 5 GHz (4,320 Mbps), 6 GHz (5,765 Mbps) |
| MIMO Architecture | 2x2:2 MU-MIMO (Tri-Band) |
| Network Ports | 1x 5 GbE RJ45 Port (PoE+ Input) |
| Power Method | Power over Ethernet (PoE+ 802.3at), Max Power: 25.5W |
| Coverage Range | Up to 175 meters (574.15 feet) |
| Concurrent Clients | Up to 384 clients |
| SSID Capacity | 48 SSIDs total (16 per radio) |
| Mounting Options | In-Wall, On-Wall, Junction Box Mount |
| Dimensions & Weight | 168.95 x 118.95 x 39.1 mm / 550g |
What's included in the Package of the Grandstream GWN7672WM
- 1x Grandstream GWN7672WM Wi-Fi 7 Access Point
- 1x Front Cover
- 1x Rear Shell Mounting Bracket
- 1x Installation Screw Kit (Pan Head Tapping & Machine Screws, Expansion Bolts)
- 1x Quick Installation Guide
- 1x Regulatory Paper
For complete technical documentation, download the Grandstream GWN7672WM Datasheet.
