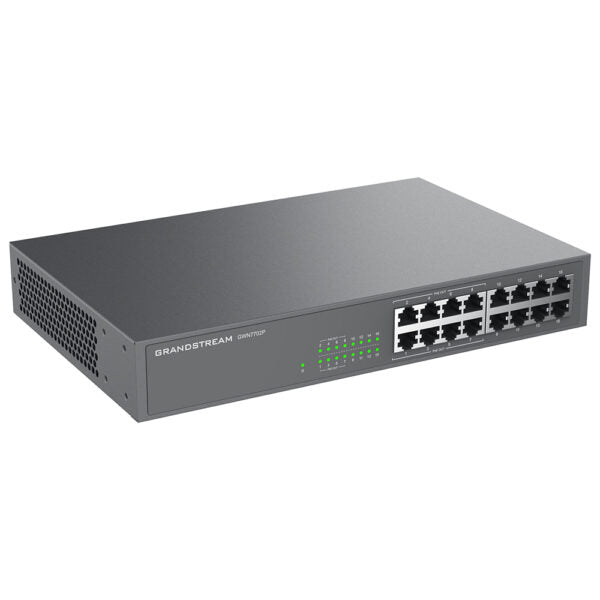

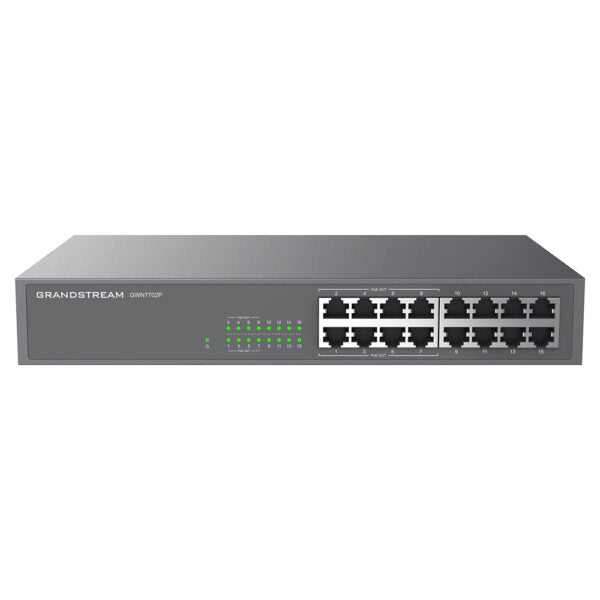

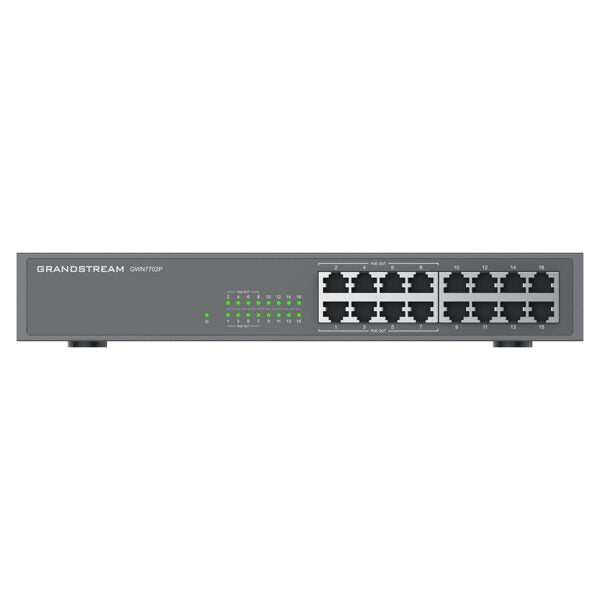

Grandstream GWN7702P Unmanaged Network Switch, 16 x GigE (8 x PoE)

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.

Features:

• Unmanaged Network Switch
• 16 x GigE (8 x PoE)
• 802.3 af/at compliant Up to 30W on each port
• Green technology reduces power consumption.
• LED Indicators:
  • Per port: Link/Activity
  • Per device: Power
• Auto MDI/MDIX crossover for all ports
• Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels.
• Supports long cable connection.
• QoS – Supports Default Strict Priority when present

Additional Information:

• Weight: 4.81 lb
• Dimensions: 14.41 × 8.28 × 2.09 in
• Switch Type: PoE Switches, Unmanaged Switches
• Number of Ports: 11-18
• Main Port Speed: Gigabit
• Uplink Ports: Gigabit RJ45
• Layer Support: L2
• PoE Suppor: Yes
• PoE Budget: Medium (100-199 W)

Technical Specifications:

• Box Contents:
  • 1x Switch
  • 1x 1.2m AC Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 1x QIG
• Gigabit Ports: 16
• PoE Ports: 8
• Enclosure: Metal
• Mounting: Desktop/Rack-Mount
• Standards and Protocols:
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • IEEE 802.3af
  • IEEE 802.3at
• Port Feature:
  • 16/24× 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media: 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
• PoE Configuration:
  • 1~8 Ports 802.3 af/at compliant
  • Up to 30W on Each Port
  • Total 138W Power Budget
  • Overload to cut off the lowest priority port.
  • Priority: Port 1 to Port 8
• LED Indicators:
  • Per port: Link/Activity Green
  • Per port: PoE output – Yellow
  • Per device: Power Green
• Mac Address Table: 8K
• Switching Capacity: 32Gbps
• Jumbo Frame: 10KB
• Advanced Features:
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • Half duplex backpressure
• Power Adapter:

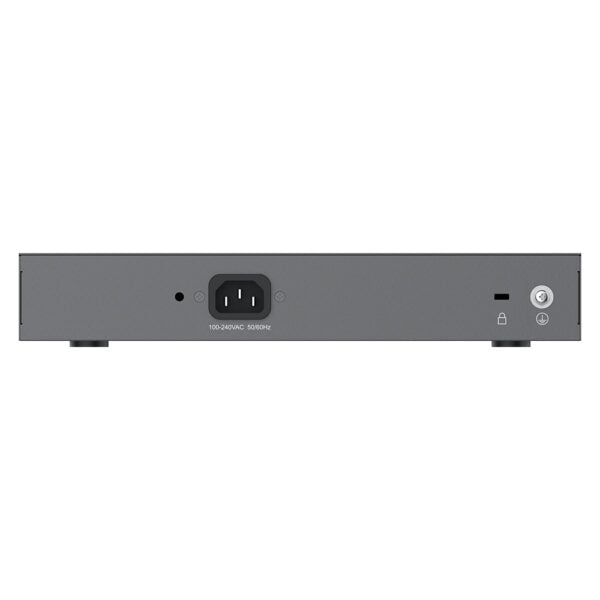

  • Internal 100-240V AC, 50/60Hz, 150W
• Max Power Consumption by Base System:
  • 10.1W@220V/50Hz (excluding PoE output power)
• Environmental:
  • Operating Temperature: 0 to 40 °C (32 to 104 °F)
  • Storage Temperature: -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity: 10% to 90% Non-condensing
  • Storage Humidity: 10% to 90% Non-condensing

For a full list of specifications, please refer to the Product Data Sheet.
