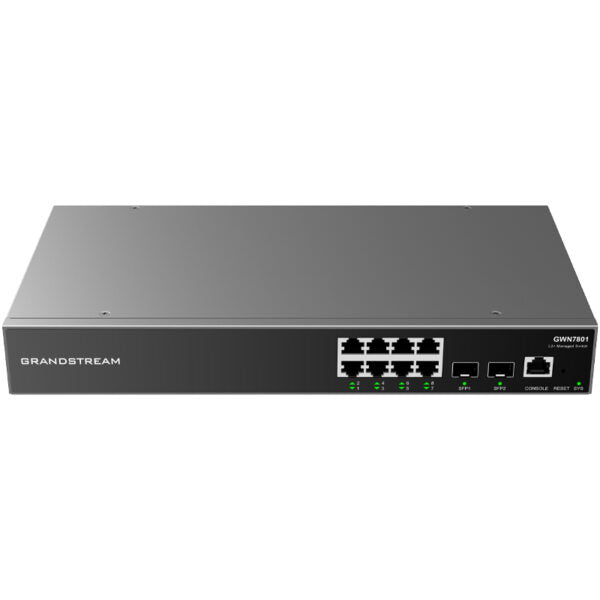

Grandstream GWN7801 Enterprise Layer 2+ Managed Network Switch

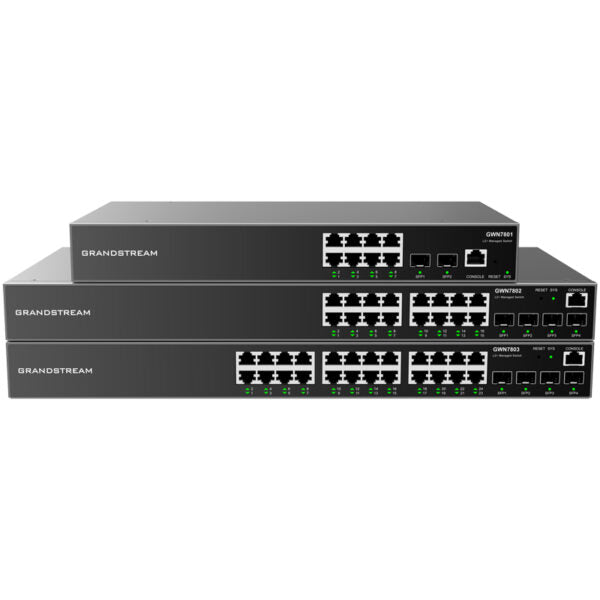

The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for automated detection & prioritization of latency sensitive voice/video traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local network controller embedded in the GWN7800 series switch, any GWN7000 series router with integrated local master, Grandstream’s free on-premises network management software (GWN Manager), as well as Grandstream’s cloud network management platform (GWN.Cloud). The GWN7800 series are best value enterprisegrade managed network switches for small-to-medium businesses. 3-Year Warranty Guaranteed.

Features:

• 8 Gigabit Ethernet ports

• 2 Gigabit SFP ports

• Supports deployment in IPv6 and IPv4 networks

• Provides quaternary binding of IP, MAC, VLAN & port. ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping

• Device management via SNMP, RMON, CLI, HTTPS,TR069, GWN Manager, GWN Cloud

• Advanced QoS auto detects and prioritizes latency sensitive audio/video/RTP/ VoIP/SIP packets

• 3-Year Warranty Guaranteed

Additional Information:

• Weight: 3.97 lbs

• Dimensions: 1.18 × 6.89 × 1.74 in

• Switch Type: Managed Switches

• Number of Ports: 5-10

• Main Port Speed: Gigabit

• Uplink Ports: Gigabit SFP

• Layer Support: L2+

• PoE Support: No

• Product Family: GWN-Cloud

• Redundant Power Supply: No

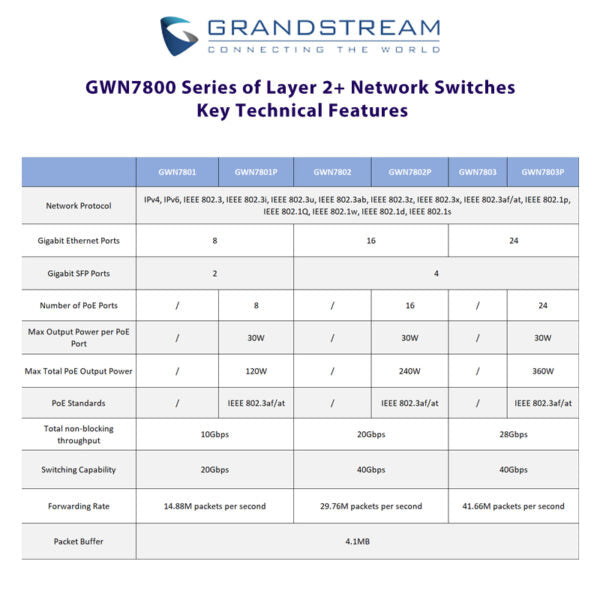

Technical Specifications:

• Model: GWN7801

• Network Protocol:

• IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s

• Gigabit Ethernet Ports: 8

• Gigabit SFP Ports: 2

• Console: 1

• Number of PoE Ports: N/A

• Integrated Power Supply: 30W

• Max Output Power per PoE Port: N/A

• Max Total PoE Output Power: N/A

• PoE Standards: N/A

• Auxiliary Ports:

• 1x Reset Pinhole

• Forwarding Mode: Store-and-forward

• Total non-blocking throughput: 10Gbps

• Switching Capability: 20Gbps

• Forwarding Rate:

• 14.88M packets per second

• Packet Buffer: 4.1MB

• Switching:

• 8K static, dynamic and filtering MAC addresses

• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN

• VLAN virtual interface

• GVRP

• 8 link aggregation groups

• Spanning tree, 64 instances for STP/RTSP/MSTP

• Multicast: IGMP Snooping, MLD Snooping, MVR

• Mounting: Desktop/ Wall-Mount

• LEDs:

• 1x tri-color LED for device tracking and status indication

• 10x green LEDs for data ports

• Package Content:

• GWN7801 Switch

• 1x 1.2m(10A) AC Cable

• 1x Ground Cable

• 4x Rubber Feet

• 2x Lug Ear

• 3-Year Warranty Guaranteed

For a full list of specifications, please refer to the product datasheet.
