Grandstream
![]()
![]()
![]()
![]()
Grandstream GWN7802P PRO 16-Port Gigabit L2++ Managed PoE Switch
Product SKU: GSGWN7802P Pro
Available:
Only 1 item in stock
1 item in stock
In stock
Out of stock
Back in stock
The Grandstream GWN7802P Pro is an enterprise-grade Layer 2++ managed PoE switch engineered to power and scale small-to-medium business networks. Equipped with 16 Gigabit Ethernet ports and 2 Gigabit SFP uplink ports, it provides up to 36Gbps total non-blocking throughput and 72Gbps switching capability to handle demanding high-bandwidth applications. Featuring smart dynamic PoE output (IEEE 802.3af/at/bt) with a 250W total power budget, the GWN7802P Pro seamlessly powers IP desk phones, security cameras, and Wi-Fi access points.
High-Performance & Smart Power Delivery

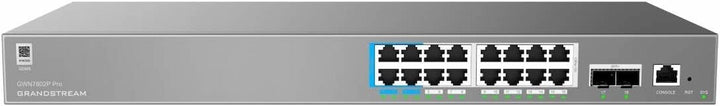

- High-Speed Connectivity: 16x Gigabit RJ45 PoE ports and 2x SFP uplink ports for high-capacity backhaul connections.
- Dynamic PoE Allocation: Complies with IEEE 802.3af/at/bt standards, delivering up to 60W per port with a 250W total PoE power budget.
- High Throughput: Features 36 Gbps non-blocking throughput and a 72 Gbps switching capacity to eliminate network bottlenecks.
Advanced Network Control & Security
- Flexible L2++ Management: Supports VLAN segmentation, QoS prioritization, and IGMP/MLD Snooping for low-latency media streaming.
- Enterprise Security Suite: Protects your network with Dynamic ARP Inspection, IP Source Guard, DoS attack prevention, and port security.
- Versatile Management Options: Manage via GDMS Cloud, GWN Manager (on-premise software), embedded WebUI, GWN Routers, or CLI.
Technical Specifications of Grandstream GWN7802P Pro:
| Feature | Specification |
|---|---|
| Interfaces | 16x Gigabit RJ45 Ports, 2x Gigabit SFP Ports, 1x Console Port |
| PoE Standards | IEEE 802.3af/at/bt (Smart dynamic allocation) |
| PoE Power Budget | 250W Total (Up to 60W max output per port) |
| Switching Capacity | 72 Gbps |
| Total Non-Blocking Throughput | 36 Gbps |
| Forwarding Rate | 53.568 Mpps |
| Packet Buffer | 8.4 Mb |
| Flash / RAM | 32MB Nor Flash / 128MB RAM |
| Management Options | Embedded WebUI, GDMS Cloud, GWN Manager, GWN Routers, CLI |
| Dimensions (L x W x H) | 440 mm x 200 mm x 44 mm |
| Unit Weight | 2.9 kg |
| Power Supply | Internal 100-240V AC, 50/60Hz |
What's Included in the package of Grandstream GWN7802P Pro:
- 1x GWN7802P Pro Switch
- 1x 1.2m AC Power Cable
- 1x Power Cord Anti-Trip Clip
- 1x 25cm Ground Cable
- 2x Rack-Mounting Kits & 8x Screws (KM3*6)
- 4x Rubber Footpads
- 1x Quick Installation Guide & Regulatory Paper
For a full list of specifications, please refer to the Grandstream GWN7802P Pro Datasheet.
