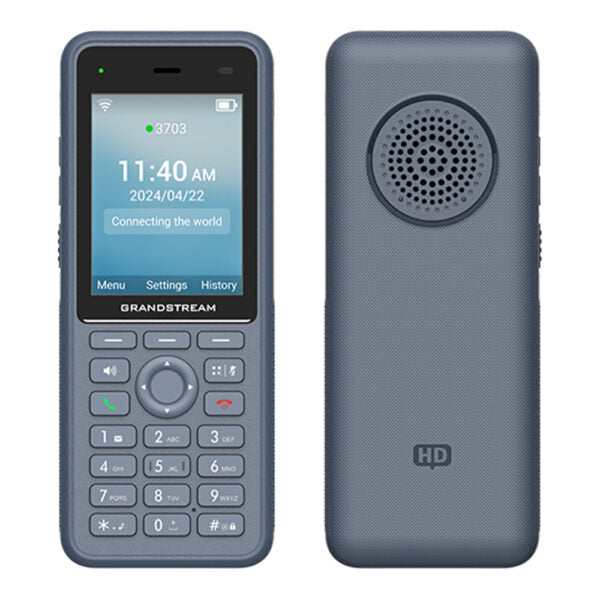

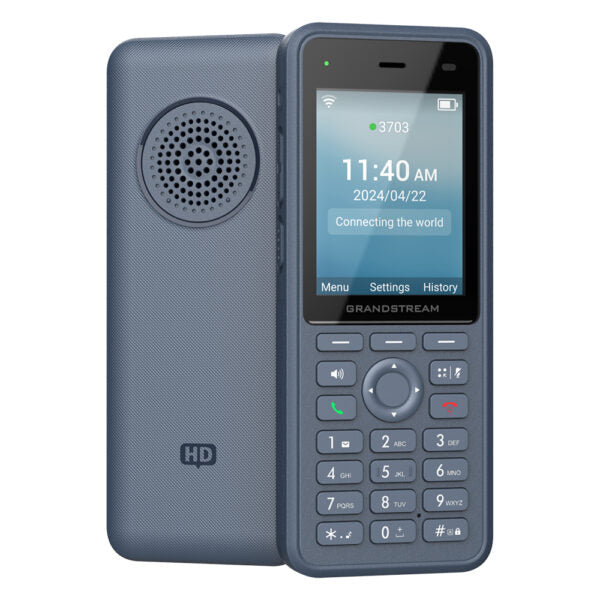

Grandstream WP836 Ruggedized Wi-Fi IP Phone

The WP836 is a cordless Wi-Fi IP phone suitable for many enterprise and vertical market applications, including offices, retail, logistics, healthcare, security, and more. This high-end cordless Wi-Fi phone is equipped with integrated dual band Wi-Fi 6, an advanced antenna design, roaming support, 4-way voice conferencing, AI-based noise reduction, and support for the Opus HD voice codec. The WP836 provides 10 hours of talk-time and 200 hours of standby time through a 3000mAh battery to drive employee productivity. Withstand any weather environment thanks to the IP67 weatherproof design which provides exceptional waterproof and dustproof performance. By providing a sleek design, easy-to-use interface, and a variety of practical, customizable features, the WP836 provides mobility and flexibility to all voice solutions.

Features:

• Dual-band Wi-Fi 6 with efficient antenna design and advanced roaming support
• 3 SIP accounts, 3 lines, 4 conferences
• HD voice & dual MIC design with AEC, Noise Shield Technology and AI Noise Reduction
• Integrated Bluetooth to connect headsets, Type C USB port (fast charging)
• Rechargeable 3000mAh battery, 10 hours talk time, 240-hour standby
• Configurable button for Push-to-Talk
• Alarm functions include push-button, man-down, no-movement, running, ambient sound
• IP67 Rated -Waterproof, dust-proof, cleaning chemical resistant, antibacterial casing

Additional Information:

• Weight: 1.01 lb
• Dimensions: 7.22 × 4.65 × 3.03 in
• Phone Type: DECT, WiFi / WiFi Capable

Technical Specifications:

GENERAL INFO:

• Model: WP836
• Package Contents:
  • WP836 Phone
  • Type-C Power Adapter

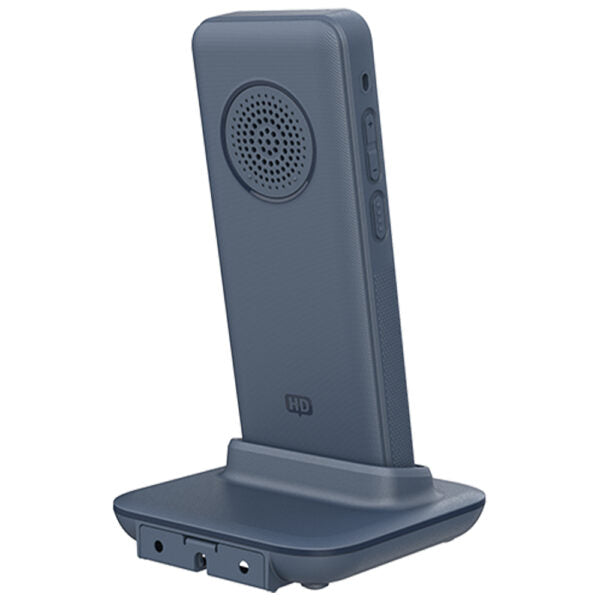

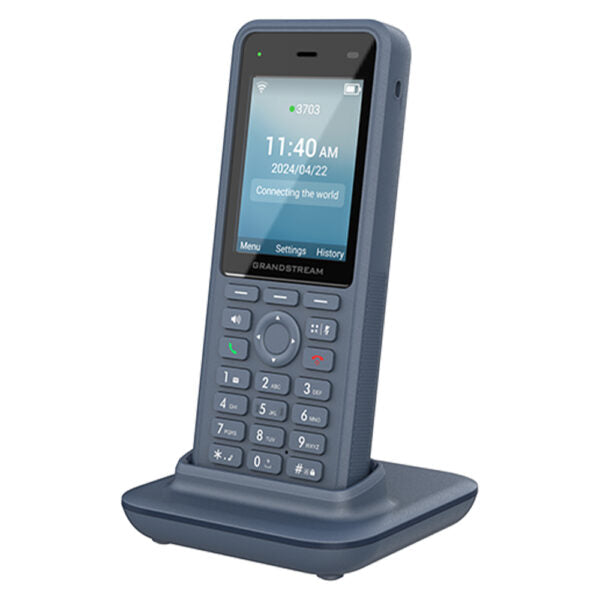

  • Charger Base
  • Belt Clip
  • 1 Lithium-ion Battery
  • M3 Screw
  • Wall Bracket
  • Quick Installation Guide
• Protocol/Standards:
  • SIP RFC3261, DNS (A record, SRV, NATPR), DHCP, SSH, NTP, STUN, LDAP,
    TR069, SRTP, RTP/RTCP, RTCP-XR, TFTP, SIMPLE, HTTP/HTTPS,
    TCP, UDP, TLS, ARP, ICMP, IPv4, IPv6, 802.1x
• Voice Codecs and Capabilities:
  • G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723, iLBC, Opus, in- band and
    out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB,
    Headset Noise Shield
• Wi-Fi:
  • Yes, integrated dual-band Wi-Fi 6 802.11 a/b/g/n/ac/ax (2.4GHz & 5GHz).
    802.11k/r/v Supported, 2T2R Supported
• Wi-Fi Encryption:
  • Supports WEP, WPA, WPA2, WPA3 (personal)
• Graphic:
  • 2.8-inch (240×320) color LCD, 1 * Dual color MWI
• Bluetooth:
  • Yes, Integrated
• Peripherals:
  • 3 soft keys, navigation keys, confirm key, dial key, hang up key, speaker key, quick
    access and mute key, backlight DTMF keyboard, volume keys, Push-to-Talk key,
    accelerometer, proximity sensor
• Push-to-Talk:
  • Customizable function buttons such as Alarm and Paging.
• Auxiliary Ports:

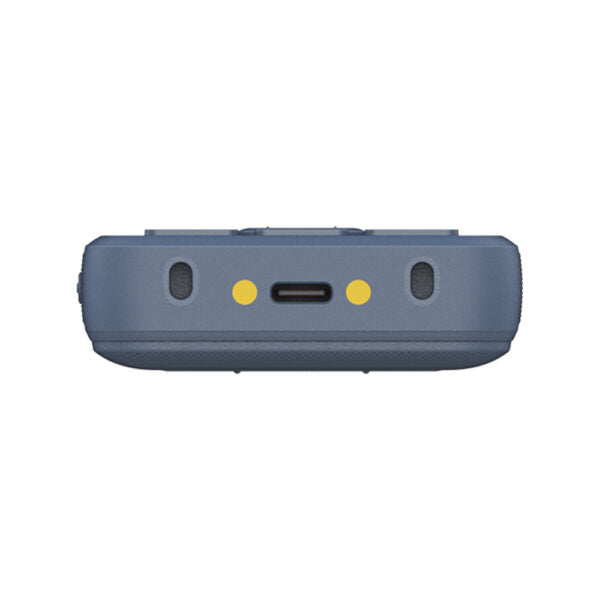

  • Type-C charging interface (supports fast charging)
• Telephony:
  • Hold, transfer, forward, 4-way audio conference, call park, downloadable
    phonebook (XML, LDAP, up to 1000 items), call waiting, call log (up to 200 records),
    auto answer, click to dial, flexible dial plan, personalized music ringtones, server
    redundancy and fail-over, push-to-talk
• Security:
  • Ordinary user and administrator level passwords based on SHA-256 and SHA-256 sess
    authentication, SIP authentication algorithms based on SHA-256, SHA-256 sess,
    SHA-512-256, SHA-512-256 sess, md5 sess. AES security profile, SRTP, TLS call
    encryption, 802.1x media access control.
• HD Audio:
  • The handset is broadband audio, supporting HAC and dual Mic.
• QoS:
  • Supports Layer 3 QoS (Tos, DiffServ, MPLS, DSCP).
• Upgrade/Provisioning:
  • Firmware upgrade via FTP / FTPS / TFTP / HTTP / HTTPS, mass provisioning using
    GDMS/TR069 or AES encrypted XML configuration file
• Temperature and Humidity:
  • Operating Temperature:
    • 0ºC to 45ºC
  • Operating Humidity:
    • 10-90% (non-condensing)
  • Storage Temperature:
    • -20ºC to 60ºC.
  • Storage Humidity:
    • 10-90% (non-condensing)
• Physical:
  • Handset dimensions:
    • 155 x 62 x 19mm
  • Charger cradle dimensions:
    • 95 x 95 x 30.5mm
  • Handset weight (not including battery):
    • 158g
  • Handset package weight (not including QIG):
    • 616g

For a full list of specifications, please refer to the product datasheet.
