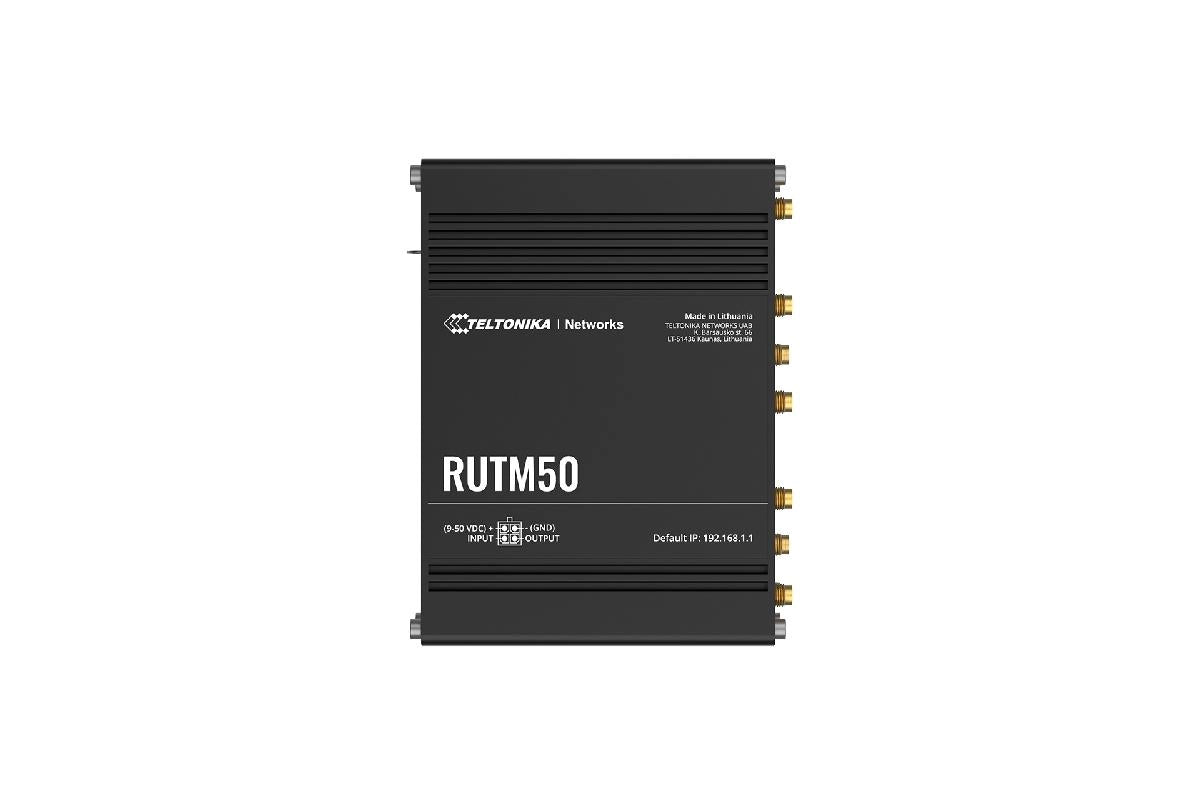

Teltonika RUTM50 Flagship 5G Industrial Cellular Router RUTM50000000 (NA)

The Teltonika RUTM50 is a powerhouse 5G router engineered for mission-critical infrastructure and demanding industrial IoT (IIoT) applications. Delivering ultra-fast 3.4 Gbps 5G connectivity and featuring an advanced suite of redundancy and security protocols, the RUTM50 provides the stability, speed, and wide protocol support necessary for continuous, high-volume data transmission in harsh environments.

North America (NA) 5G Carrier-Ready Performance

The Teltonika RUTM50000000 is pre-configured and certified for deployment across all major North American carriers, ensuring wide-ranging compatibility and optimal performance on both 5G Standalone (SA) and Non-Standalone (NSA) networks.

• 5G NR NSA & SA- n2, n5, n12, n13, n41, n66, n71, n77, n78 (Covers all major US/CA carrier bands)
• 4G (LTE-FDD)-B2, B4, B5, B7, B13, B14 (Includes essential bands for AT&T FirstNet and Verizon)

For a full list of supported frequencies, please refer to the Teltonika RUTM50 Cellular 5G Router datasheet.

Extreme 5G Speed and Unmatched Network Redundancy

The RUTM50 is built on 3GPP Release 16 technology, ensuring cutting-edge speed and seamless failover.

• Ultra-High 5G Performance: Achieves incredible cellular speeds of up to 3.4 Gbps DL (4x4 MIMO) on 5G Sub-6 GHz SA/NSA bands.
• Comprehensive Failover: Features Dual SIM slots with 8 configurable auto-switch cases (e.g., weak signal, roaming, data limit) and Load Balancing over multiple WAN connections for unbreakable connectivity.
• Multi-WAN Backup: Supports automatic Network Backup using Wi-Fi WAN, Mobile, and VRRP (Virtual Router Redundancy Protocol).

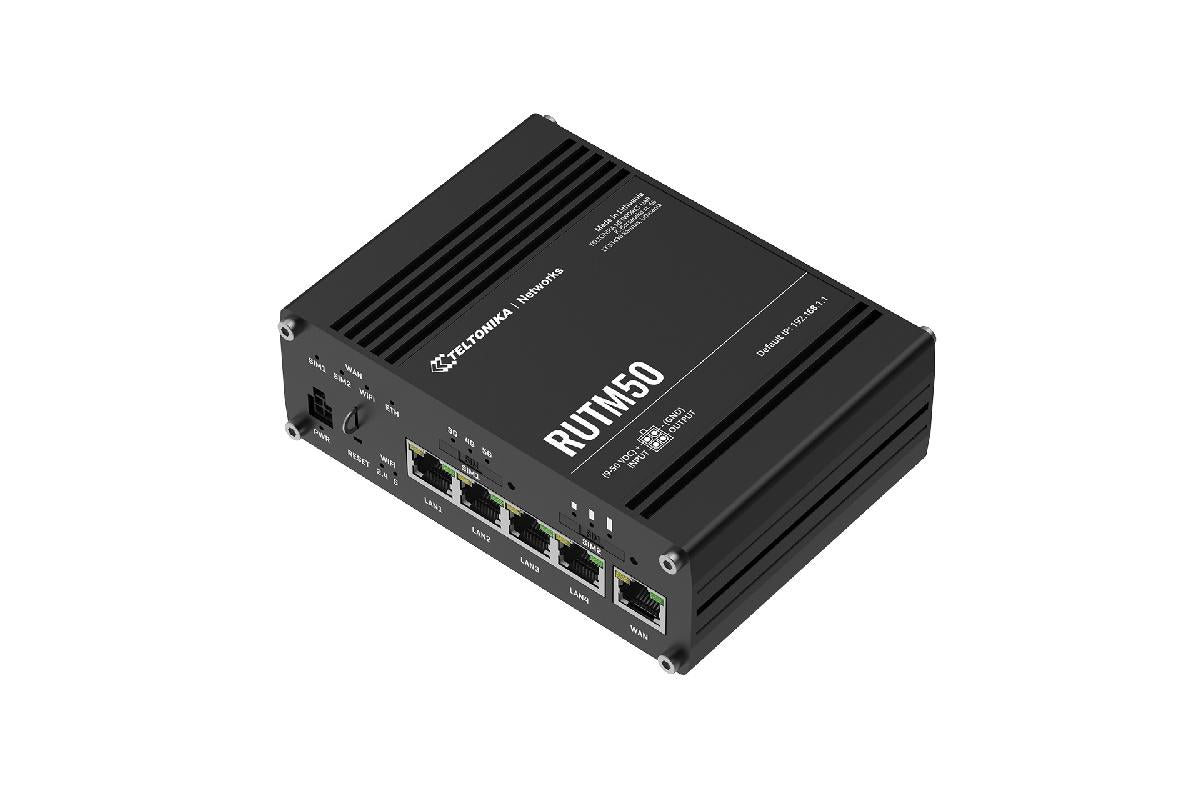

• Ethernet Ports: Equipped with 5 x Gigabit Ethernet ports (1 WAN, 4 LAN) supporting 10/100/1000 Mbps speeds.

Professional-Grade Wireless and VPN Capabilities

Provides secure, high-speed local connectivity and secure remote access.

• High-Speed Wi-Fi: Integrated 802.11ac Wave 2 (Wi-Fi 5) with Dual Band and MU-MIMO capabilities, supporting up to 867 Mbps and up to 150 simultaneous users.
• Advanced Wi-Fi Features: Supports modern features like Wireless Mesh (802.11s) and Fast Roaming (802.11r) for smooth mobility in large facilities.
• Extensive VPN Suite: Offers industry-leading security with support for OpenVPN (with 27 encryption methods), WireGuard, IPsec, DMVPN, L2TP, and more.

Rugged Design and Industrial Protocol Support

• Industrial Protocols: Supports a wide range of protocols critical for IIoT integration: MQTT, Modbus, DNP3, DLMS/COSEM, and OPC UA.
• Harsh Environment Ready: Designed with an IP30 rating and robust anodized aluminum casing, operating in extreme temperatures from -40 °C to 75 °C.
• Location Tracking: Includes GNSS (GPS, GLONASS, BeiDou, Galileo) with Geofencing support for asset tracking and location-based monitoring.

Standard Package Contents for RUTM50000000 NA Version

• Teltonika RUTM50 Router
• 18W US PSU for RUTM50 Router
• 4 x Mobile Antennas-Swivel (SMA male)
• 2 x WiFi Antennas-Magnetic Mount (RP-SMA male, 1.5 m cable)
• 1 x GNSS Antenna-Adhesive (SMA male, 3 m cable)
• Accessories- Ethernet cable (1.5 m), SIM Adapter kit, Quick Start Guide
