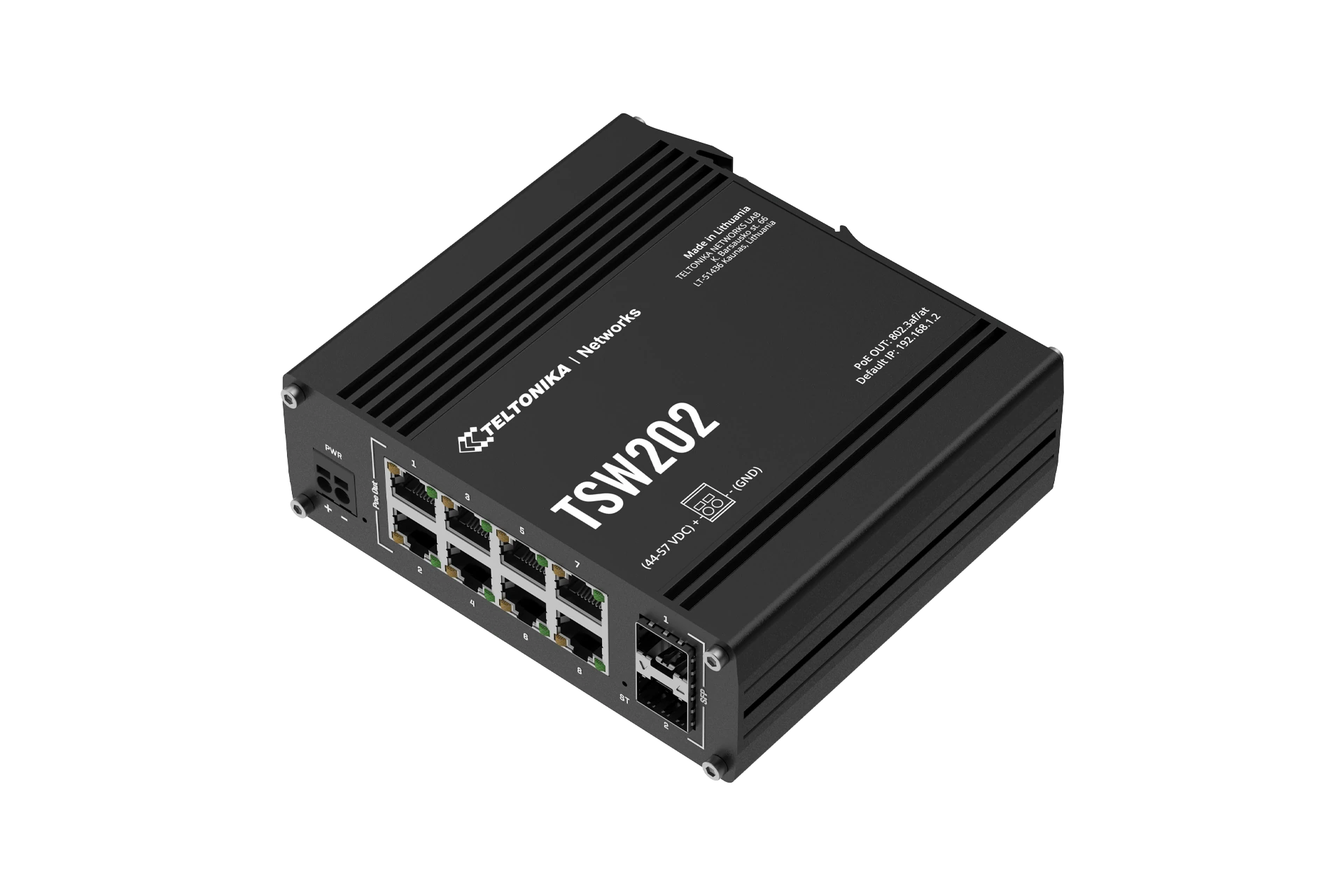

Teltonika TSW202 Managed PoE+ Switch | 8-Port Gigabit
The Teltonika TSW202 is a high-performance, L2 managed industrial switch designed for mission-critical networking in Canada’s most demanding environments. Whether you are managing complex IP surveillance in a transit hub, remote energy utilities, or smart-city infrastructure, the TSW202 provides the intelligence and ruggedness required for 24/7 uptime.
Advanced Managed Networking & High-Power PoE+
- High-Capacity PoE+ Ports: Features 8 x Gigabit Ethernet ports supporting IEEE 802.3af/at standards, delivering up to 30W per port.
- Massive Power Budget: Supports a total PoE power budget of up to 240W (at PSE), eliminating the need for multiple smaller switches in high-density camera or AP deployments.
- Managed Intelligence (L2 with L3 features): Take full control of your network with support for VLANs, QoS (Port/DSCP/802.1p priority), and IGMP Snooping for precise multicast management.
- Fiber Optic Uplinks: Equipped with 2 x SFP ports for high-speed fiber communication, ideal for long-distance links across large job sites or between buildings.
- Industrial Protocol Support: Ready for advanced automation with support for PROFINET, EtherNet/IP, and MRP for seamless integration into industrial control systems.
Rugged Industrial Design and Security
- Extreme Temperature Resilience: Rated for a wide operating range from -40°C to 75°C, ensuring reliability in unheated Canadian warehouses or outdoor enclosures.
- Industrial Durability: Housed in an IP30-rated anodized aluminum casing with an integrated DIN rail bracket for secure mounting.
- Enterprise Security: Offers port-based network access control (802.1x), MAC filtering, and Radius/TACACS+ authentication to protect your local infrastructure.
- RMS Integration: Fully compatible with Teltonika’s Remote Management System (RMS) for centralized monitoring, configuration, and remote firmware updates without a site visit.
Choose Your Power Configuration
This listing offers two distinct variants to fit your specific deployment needs:
- TSW202000040 (250W Bundle): The complete "out-of-the-box" solution. Includes the TSW202 switch and a high-capacity 250W US Power Supply. This configuration provides the massive power overhead needed to run a full suite of power-hungry PoE+ devices.
-
TSW202000000 (Base Unit): Designed for professional installers who already have a centralized DC power source in a DIN rail cabinet.
- Note: To enable PoE+ output, an external power source of 44–57 VDC must be supplied.
What’s Included in the Box of Teltonika TSW202 Managed PoE+ Switch:
| Included Component | TSW202000040 (250W Bundle) | TSW202000000 (Base Unit) |
| TSW202 Switch Unit | 1 x | 1 x |
| 250W US Power Supply (PSU) | 1 x | Not included |
| Quick Start Guide (QSG) | 1 x | 1 x |
Important Note for Professional Installers: The TSW202000000 variant is intended for sites with existing industrial DC power. If you are not wiring this device into a 44V–57V DC source, please select the TSW202000040 (Includes US PSU) variant to ensure full functionality of the PoE+ output ports.
For a full list of technical specifications, please refer to the Teltonika TSW202 Managed PoE+ Switch Datasheet.
