Yealink A40-010 Collaboration Bar – 1206675

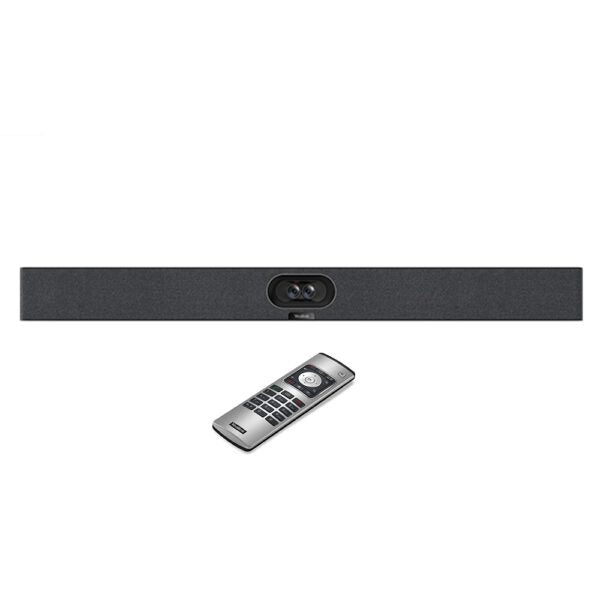

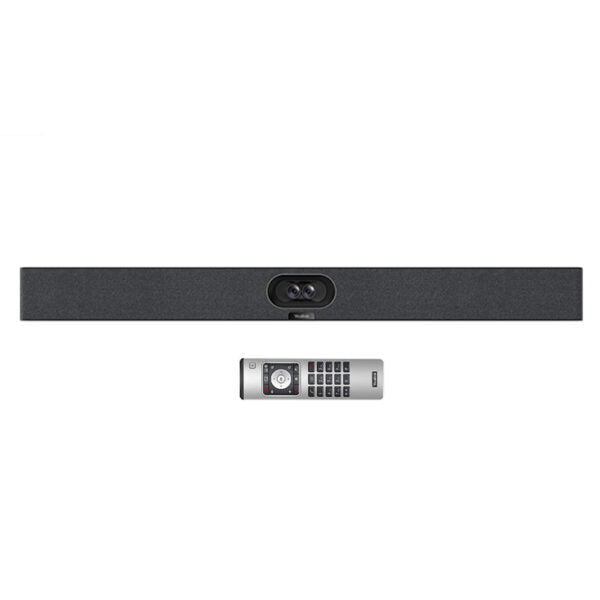

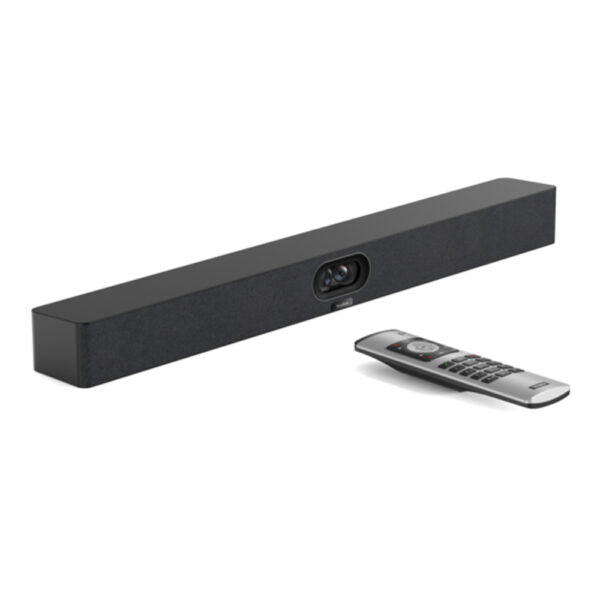

Yealink MeetingBar A40 is an all-in-one video collaboration bar for premium small-to-medium rooms. It will combine the images from two 48MP lenses, present a higher pixel picture, and deliver clearer image quality. It also features built-in 2 stereo speakers, 8x MEMS microphone array, and supports 2 additional expansion microphones. The intelligent noise reduction technology provides a good audio experience.

Yealink MeetingBar A40 allows for the upgrade to the latest Android operating system, Android 13, and will continue to receive future upgrades. It can ensure that users can enjoy the latest features and improvements as they become available. In addition, it is compatible with Microsoft’s MDEP, which enhances security and deployment experiences. This integration provides users with a more secure environment and streamlined deployment processes, contributing to a smoother and safer user experience.

Features:

• All-in-one Audio & Video Device
• Video Fence
• IntelliFocus
• 2*48MP Cameras
• 6m Pick-up Range
• 2*Speaker with Stereo Sound
• Ultra HD picture quality
• High-quality audio pickup experience
• Compatible with Microsoft’s MDEP
• Multi-Platform Flexibility
• Simple deployment
• Remote device management

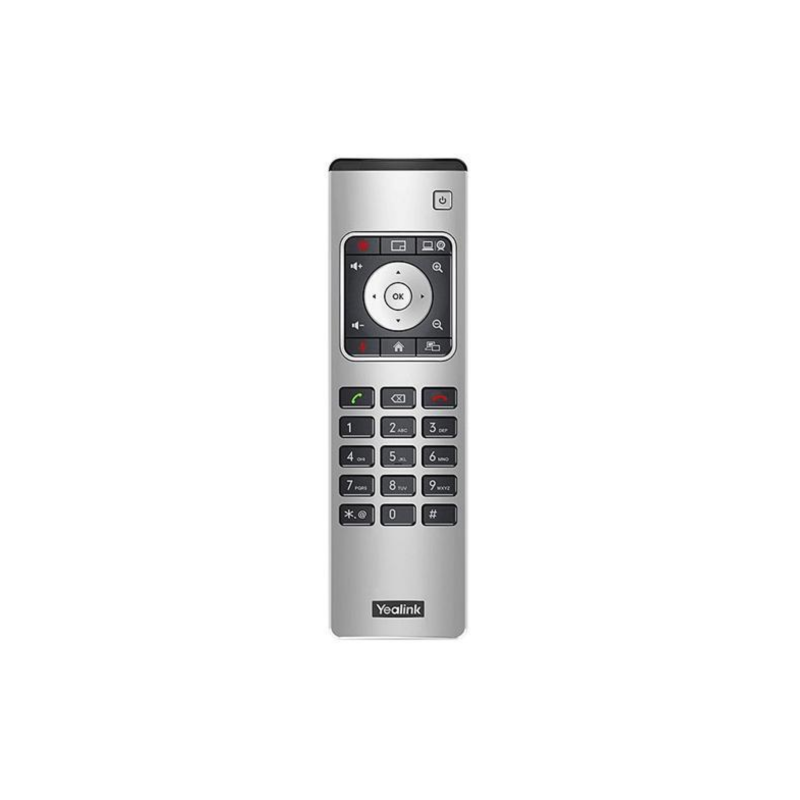

• 1x VCR11 remote control

Additional Information:

• Weight: 10 lb
• Dimensions: 8.11 × 7.99 × 29.84 in

• Video Room Size: Medium, Small/Huddle
• Video Conferencing: Android, Collaboration Bars, Camera

Technical Specifications:

GENERAL INFO:

• Model: A40-010
• Part number: 1206675

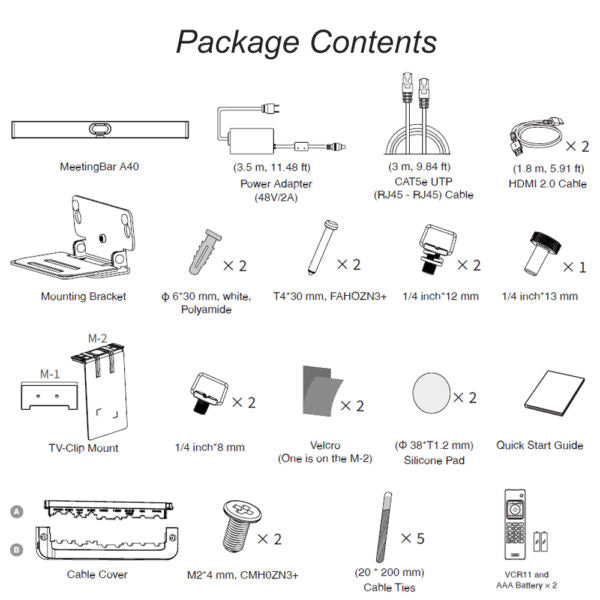

• Package Content:
  • MeetingBar A40
  • HDMI cable x2
  • Network cable x1
  • TV-Clip Mount x1
  • Wall Mount x1
• Camera:
  • Maximum pixels: 2*48MP pixels
  • Number of preset positions: 9
  • Electronic gimbal
  • 120° DFOV, 54° VFOV, 110° HFOV
  • Depth of field: 1-5 meters
  • 6x digital zoom
  • Maximum resolution: 4K
  • Maximum frame rate: 60FPS
  • Video output resolution: 4K60fps, 1080P60fps
  • Effective focal length: 4.2 mm
  • Aperture: F/2.2-F/2.4
  • Supports wide dynamic range
  • High dynamic range imaging: 10-bit
  • Supports auto exposure
  • White balance: ATW/auto/manual
  • Shutter speed: 10ms-33ms
  • Minimum illumination: 0.5 lux (daytime), 0.1 lux (nighttime)
  • Signal-to-noise ratio: >63 dB
  • Privacy cover: Electric lens cap
  • Lens calibration
  • Intelligence Features
    • IntelliFocus
    • Auto Framing
    • Speaker Tracking
  • People counting
    • Picture in Picture
    • Smart Gallery (Zoom only)
  • Number of cameras: 2
• Speaker:
  • Built-in 2 x 10W speakers
  • Frequency response: 100-16kHz
  • Sensitivity: 86dB SPL @ 1W @ 0.5 meter
  • Maximum sound pressure level: 112dBSPL 10W@0.1m
  • Sampling rate: 48kHz
  • Sound emission angle: Forward-facing
  • Total Harmonic Distortion (THD): at 10W, 1kHz, ＜5%
  • Rated impedance: 4 ohms
  • Maximum power: 12W
  • Rated power: 10W
• Video Codec:
  • H.264 High profile, H.264 SVC, H.264
• Communication standard protocol:
  • Dual stream protocol: H.239 (H.323) / BFCP (SIP)
  • FECC: H.224/H.281
  • H.323 protocol suit: H.245, H.225, H.235, H.241
  • Gatekeeper account and SIP account
• Audio Codec:
  • ARES: 24KHZ bandwidth
  • G.722.1C: 16KHz bandwidth
  • G.722.1: 8KHz bandwidth
  • G.722: 8KHz bandwidth
  • G.711 (PCMA/PCMU): 4KHz bandwidth
  • G.729: 8KHz bandwidth
• Microphone:
  • Built-in 8 MEMS microphone array
  • 6-meter pickup distance, 4-meter high-quality pickup distance
  • Signal-to-noise ratio: 72dB
  • Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL
    (individual microphone)
  • Dynamic range: 28-100dBSPL
  • Sensitivity: -38dBV/pa
  • Frequency response: 100-20kHz
  • Sampling rate: 48K32bit
  • Bit depth: 32-bit
• Resolution:
  • Portrait resolution: up to 4K30fps
  • Bandwidth requirement: 10Mbps or more
• Installation:
  • Wall mount
  • Use TV-Clip Mount
  • Place on the desktop
• Ports:
  • 1x USB2.0 USB-A port
  • 2x USB-C port
  • 1x Ethernet port
  • 1x Yealink VCH port (RJ-45)
  • 1x 3.5mm Line-in & Line-out port
  • 1x Power port
  • 1x Security lock slot
  • 1x Reset slot
  • 2x HDMI-out
• Dimensions and weight (W × D × H):
  • MeetingBar A40: 650 × 62 × 80 mm
  • N.W/CTN: 5.540 kg
  • G.W/CTN: 6.086kg
• Environmental Factor:
  • Operating humidity: 10 – 95%
  • Operating temperature: 0 – 40°C

For a full list of specifications, please refer to the Product Datasheet.
