Yealink MCore-OPS-G2 Compute Module for MeetingBoard-1303292
For a special discount on bulk orders, please contact us at info@voicedepot.ca
Lead time is 4-5 business days. Transit time is additional.
The Yealink MCore-OPS-G2 is a next-generation modular OPS compute unit specifically engineered for the Yealink MeetingBoard Series and MeetingBoard Pro collaboration displays.
Powered by an Intel Core Ultra 5 125H processor with an integrated 34 TOPS NPU, 16GB DDR5 memory, and a 256GB SSD, the MCore-OPS-G2 provides high-performance computing and graphics processing to run complex video conferencing applications, interactive whiteboards, and multitasking workflows smoothly.
Featuring a direct slot-in OPS form factor, the MCore-OPS-G2 installs directly into the display slot without external power cables or complex wiring. It supports 4K content sharing via HDMI-IN, CEC display auto-wake, TPM 2.0 security, and pre-loaded Windows 11 IoT Enterprise for enterprise meeting room management.
Advanced Compute Performance & Seamless Integration
- Intel Core Ultra 5 Architecture: Equipped with an Intel Ultra 5 125H processor featuring a 34 TOPS NPU for efficient AI and graphics handling.
- High-Speed Memory & Storage: 16GB DDR5 RAM (2x8GB) and 256GB SSD ensure rapid boot times and smooth multitasking across heavy meeting apps.
- Slot-In OPS Design: Embedded modular design slides directly into Yealink MeetingBoard displays with zero external cables or power bricks.
- 4K Video Input & Display Control: Supports 4K content casting via HDMI-IN and integrated CEC control for automatic display activation upon connection.
Enterprise Connectivity & Hardware Security

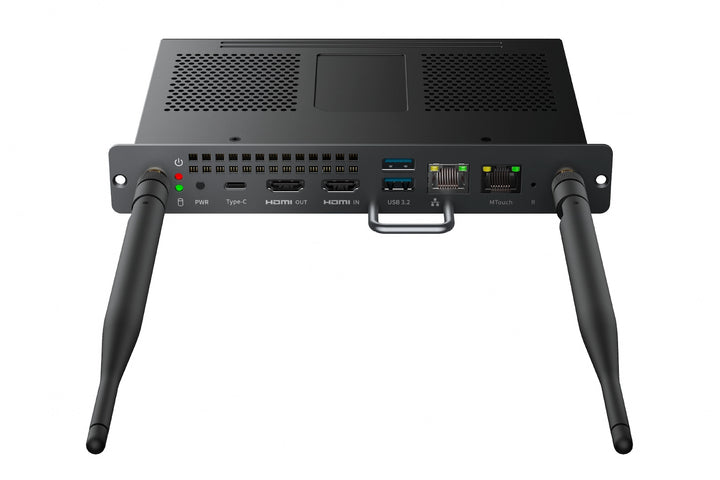

- Comprehensive IO Array: Includes 1x RJ-45 MTouch port, 1x RJ-45 Gigabit LAN port, 1x HDMI Out, 1x HDMI In, 2x USB 3.0 Type-A, and 1x USB 3.0 Type-C.
- Integrated Wireless & Security: Built-in Wi-Fi 6 (802.11ax), Bluetooth 5.2, TPM 2.0 hardware security, and UEFI Secure Boot support.
- Pre-Loaded Windows Environment: Ships pre-installed with 64-bit Windows 11 IoT Enterprise for administrative control and security management.
Technical Specifications & Package Contents
Technical Specifications of Yealink MCore-OPS-G2
| Feature | Specification |
|---|---|
| Product Model | Yealink MCore-OPS-G2 |
| Processor | Intel Core Ultra 5 125H (Built-in NPU 34 TOPS) |
| System Memory | 16GB DDR5 (2x8GB) |
| Storage | 256GB SSD |
| Operating System | Windows 11 IoT Enterprise x64 |
| Video Interfaces | 1x HDMI Out, 1x HDMI In (4K Content Sharing) |
| Network & Expansion Ports | 1x MTouch (RJ-45), 1x Gigabit LAN (RJ-45), 2x USB 3.0 Type-A, 1x USB 3.0 Type-C |
| Wireless Connectivity | Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax), Bluetooth 5.2 |
| Security Features | TPM 2.0, UEFI Secure Boot, Kernel DMA Support |
| Form Factor & Weight | OPS Slot-In / 180 x 119 x 30 mm / 0.7 kg |
What's included in the Package of the Yealink MCore-OPS-G2
- 1x Yealink MCore-OPS-G2 Compute Module
- 2x External Antennas
- 2x Mounting Screws
- 1x Screwdriver
- 1x Quick Start Guide
For complete technical documentation, download the Yealink MCore-OPS-G2 Datasheet.
