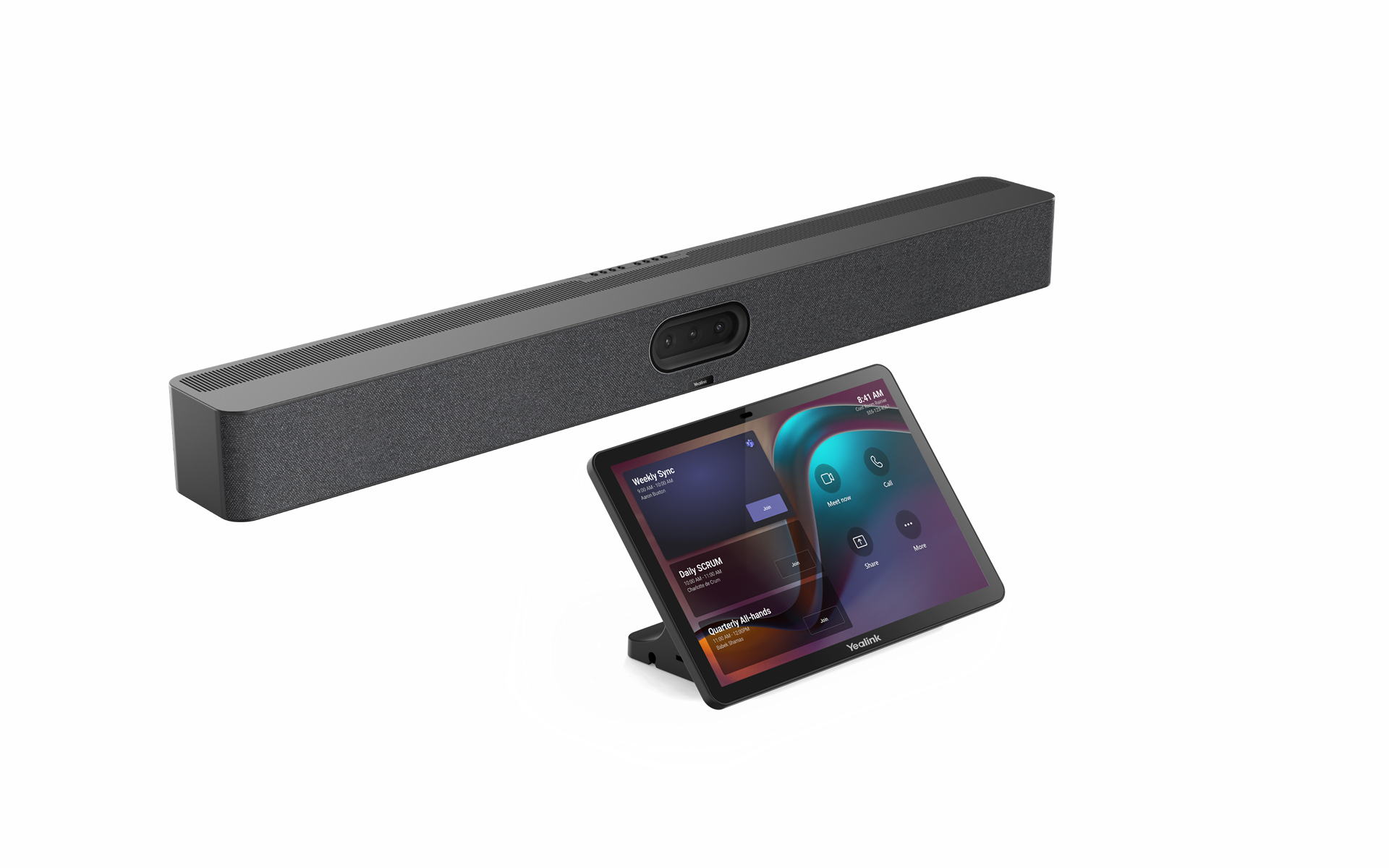

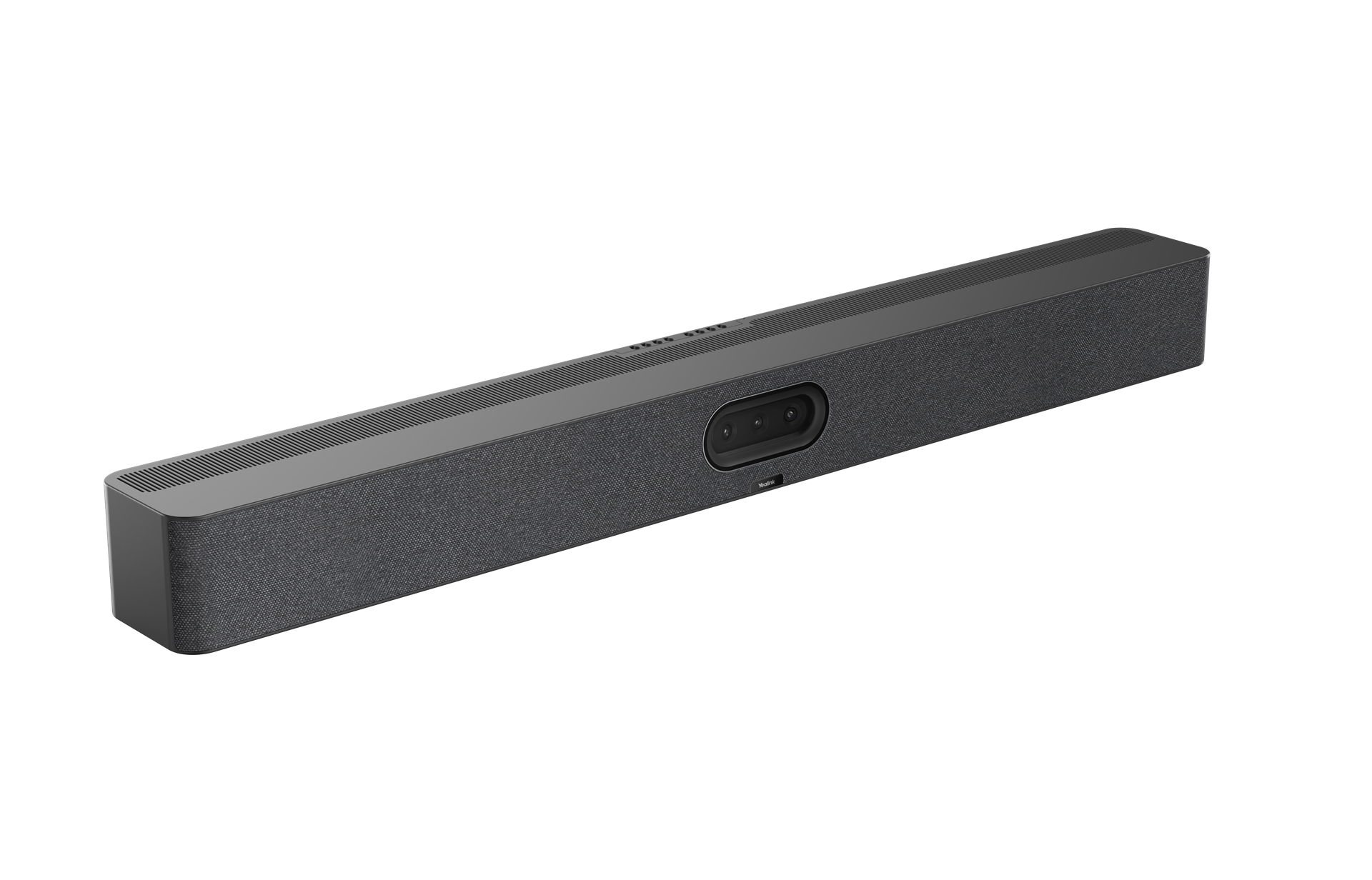

Yealink MeetingBar A50-031 ( A50 with CTP25)

Yealink MeetingBar A50-031 is an all-in-one video collaboration bar designed for premium medium-to-large meeting rooms. It delivers advanced audio and video communication capabilities, powered by cutting-edge AI technology to ensure crystal-clear sound and ultra-HD visuals. With features like intelligent full-duplex audio, IntelliFocus, and video fence, it transforms the video conferencing experience by offering exceptional clarity and efficiency in every meeting.

The MeetingBar A50 is compatible with Microsoft’s MDEP*, enhancing both security and deployment processes. This integration provides users with a safer environment and a more streamlined setup, contributing to a smoother overall experience.

Additionally, the A50 supports direct connection to the CTP25, simplifying the login process and improving user convenience. It also offers seamless compatibility with Microsoft Teams Rooms (MTR), delivering a consistent and efficient experience across both Android and Windows platforms. In the Windows-based MTR-W configuration, it is referred to as the MVC S50.

Features:

• All-in-One Design
• Triple-eye Camera System (3*50MP)
• Electric lens cap
• Built-in 4 x 5W speakers
• 10-meter pickup distance
• Compatible with Microsoft’s MDEP
• CTP25 touch console
• Teams Certified

Additional Information:

• Weight: 28.18 lb
• Dimensions: 41.73 × 20.91 × 9.45 in

• Video Room Size: Large, Medium

Technical Specifications:

GENERAL INFO:

• Box Contents:
  • 1x A50 all-in-one Collaboration bar, power adapter, wall mount bracket and cables
  • 1x CTP25 touch console, PD power adapter, Desktop stand and cables
  • 2 Year Hardware Warranty

MeetingBar A50 Specifications:

• Operating System: Android 13
• Camera:
  • Maximum pixels: 3*50MP pixels
  • Number of preset positions: 9
  • Electronic gimbal
  • 1x Wide HFOV 98°, VFOV 81° ; 2x Tele HFOV 41.6° VFOV 31.8°
  • 8x digital zoom
  • Maximum resolution: 4K
  • Privacy cover: Electric lens cap
  • Lens calibration
  • Intelligence Features
  • IntelliFocus
  • Auto Framing
  • Speaker Tracking
  • People counting
  • Picture in Picture
  • Smart Gallery (Zoom only)
  • Number of cameras: 3

CTP25 Specifications:

• OS: Android 13.0
• Display:
  • Screen: 10.1 inch
  • Display Type: IPS
  • Resolution: 1280 x 800
  • Contrast ratio: 1000:1
  • Brightness: 350 cd/㎡ (typical)
  • Viewing angle (horizontal/vertical): 178°(H)/178°(V)
  • Touchpoints: Multi-points capacitive touch support
  • Anti-glare
  • Anti-fingerprint
• Audio:
  • Built-in Ultrasound Unit
• Wireless:
  • Wi-Fi 6 802.11a/b/g/n/ac/ax
  • Bluetooth 5.0
• Network:
  • VLAN, 802.1P/Q, and Diffserv
  • 802.1X, and LLDP-MED
  • HTTPS
• Device Management:
  • Yealink Web Portal
  • Yealink Device Management Platform
  • Teams Admin Center
  • Zoom Device Management
• Physical Interface:
  • 1 x USB-A port
  • 2 x USB-C port
  • 1 x RJ45 port (PoE 802.3af complaint)
  • 1 x Reset hole
  • Motion Sensor
• Installation:
  • Place on the Table
  • Mount on the Table
  • Mount on the Wall
• Power:
  • Power Consumption:
    – Standby: 5 W
    – Average: 7.3 W
    – Peak: 15.2 W
  • Power Adapter: 65W PD
  • PoE: IEEE 802.3af and above

For a full list of specifications, please refer to the Product Datasheet.
