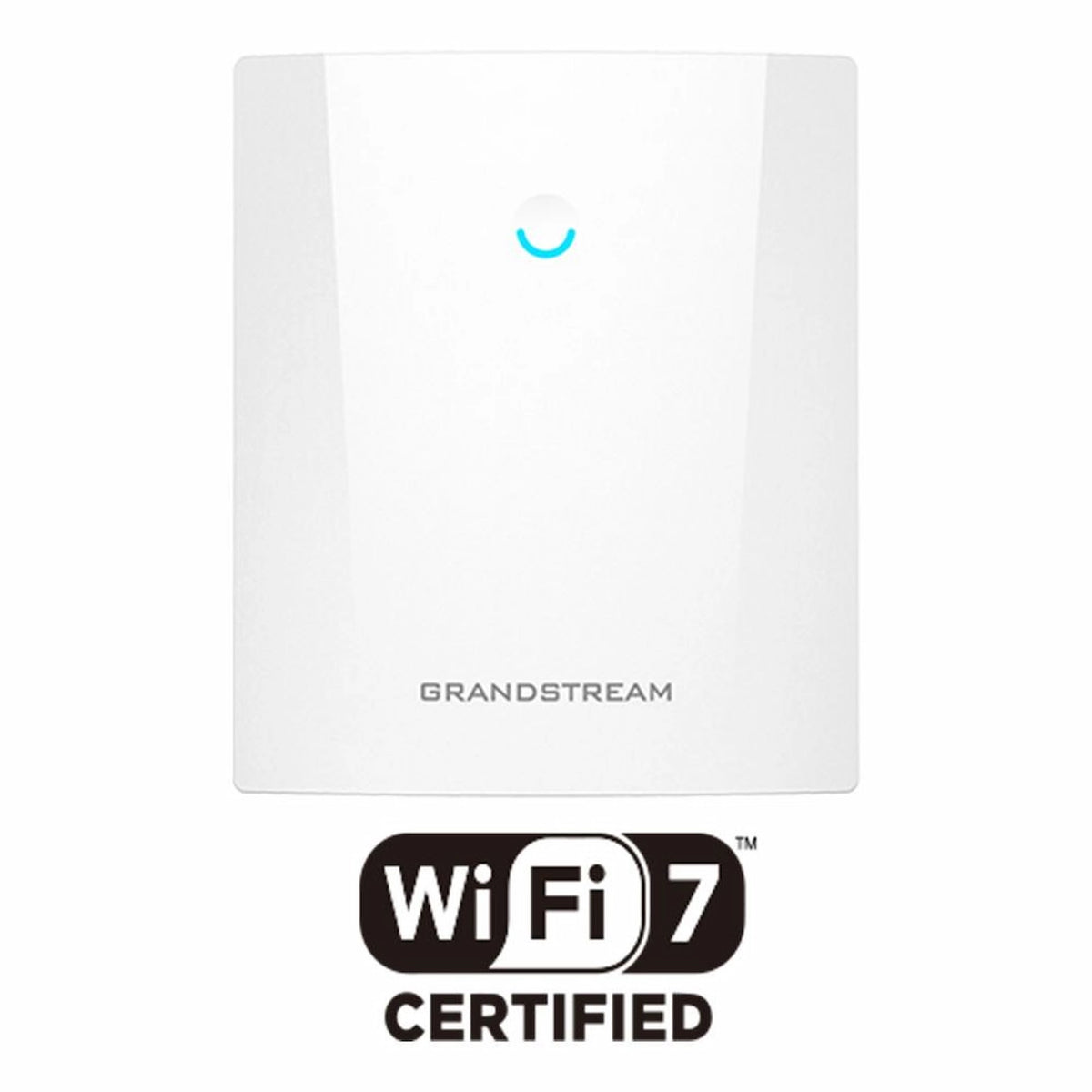

Grandstream GWN7670ELR Wi-Fi 7 Outdoor AP | Long-Range BE3600
The Grandstream GWN7670ELR is a high-performance outdoor BE3600 dual-band Wi-Fi 7 access point engineered to deliver ultra-long-range wireless coverage across demanding enterprise environments.
Built with an IP67-rated weatherproof housing capable of operating in extreme weather conditions (-30°C to 60°C), the GWN7670ELR is boosted by 5 GHz Xtra Range 2.0 technology and high-gain omnidirectional antennas, providing seamless 360-degree connectivity across a vast coverage distance of up to 350 meters (1,148 ft).
Equipped with a 2.5 GbE PoE+ port for power and data, plus an SFP module port capable of long-distance optical fiber transmission up to 20 km, the GWN7670ELR supports up to 512 concurrent client devices—making it ideal for stadiums, warehouses, parks, outdoor campuses, and industrial sites.
Advanced Wi-Fi 7 Wireless & Fiber Performance
- BE3600 Dual-Band Speeds: Delivers wireless throughput up to 2,882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz for an aggregate throughput of 3.6 Gbps.
- Long-Distance SFP Optical Port: Features an integrated SFP port supporting single-mode and multi-mode fiber connections up to 20 km.
- 2.5 GbE PoE+ Power Input: Includes a 2.5 Gigabit Ethernet RJ45 network port powered via 802.3at PoE+.
- Xtra Range 2.0 Technology: Enhanced signal penetration on the 5 GHz band ensures extended signal coverage through outdoor obstacles and walls.
- High-Density Outdoor Capacity: Connects up to 512 concurrent wireless client devices across an expansive 350-meter (1,148 ft) coverage area.
Rugged Outdoor Protection & Enterprise Management
- IP67 Weatherproof Rating: Fully sealed enclosure built to withstand extreme temperatures, heavy rain, snow, sandstorms, and high humidity.
- Versatile Pole & Wall Mounting: Includes heavy-duty base brackets and stainless steel metal straps for easy pole and outdoor wall installation.
- Hybrid Management Options: Manage locally via embedded Web UI (up to 50 local APs), or centralize management using free GDMS Networking cloud or GWN Manager.
- Enterprise Security Protection: Features anti-hacking secure boot, digital signature lockdowns, and support for up to 1,000 PPSK accounts.
Technical Specifications & Package Contents
Technical Specifications of Grandstream GWN7670ELR
| Feature | Specification |
|---|---|
| Product Model | Grandstream GWN7670ELR |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11a/b/g/n/ac/ax/be) |
| Aggregate Throughput | Up to 3.6 Gbps (BE3600) |
| Frequency Bands & Rates | 2.4 GHz (688 Mbps), 5 GHz (2,882 Mbps) |
| MIMO Architecture | 2.4 GHz (2x2:2), 5 GHz (3x3:2) MU-MIMO |
| Network Ports | 1x 2.5 GbE RJ45 Port (PoE+ Input), 1x SFP Fiber Port |
| Power Method | Power over Ethernet (PoE+ 802.3at), Max Power: 16W |
| Coverage Range | Up to 350 meters (1,148.29 feet) |
| Concurrent Clients | Up to 512 clients |
| Weatherproof Rating | IP67 Ingress Protection |
| Mounting Options | Outdoor Pole Mount, Wall Mount |
| Dimensions & Weight | 270 x 230 x 57 mm / 1.3 kg |
What's included in the Package of the Grandstream GWN7670ELR
- 1x Grandstream GWN7670ELR Long-Range Outdoor Wi-Fi 7 Access Point
- 1x Base Bracket & 1x Mounting Bracket
- 2x Metal Straps for Pole Mounting
- 1x Complete Screw & Bolt Kit (Pan Head Machine Screws, Hexagon Socket Screws, Plastic Expansion Bolts)
- 1x Interface Waterproof Kit (1x SFP Sealing Plug, 2x RJ45 Sealing Plugs, 3x O-Rings, 2x Clamp Nuts, 1x Nut Plug)
- 1x Quick Installation Guide
- 1x Regulatory Paper
For complete technical documentation, download the Grandstream GWN7670ELR Datasheet.
