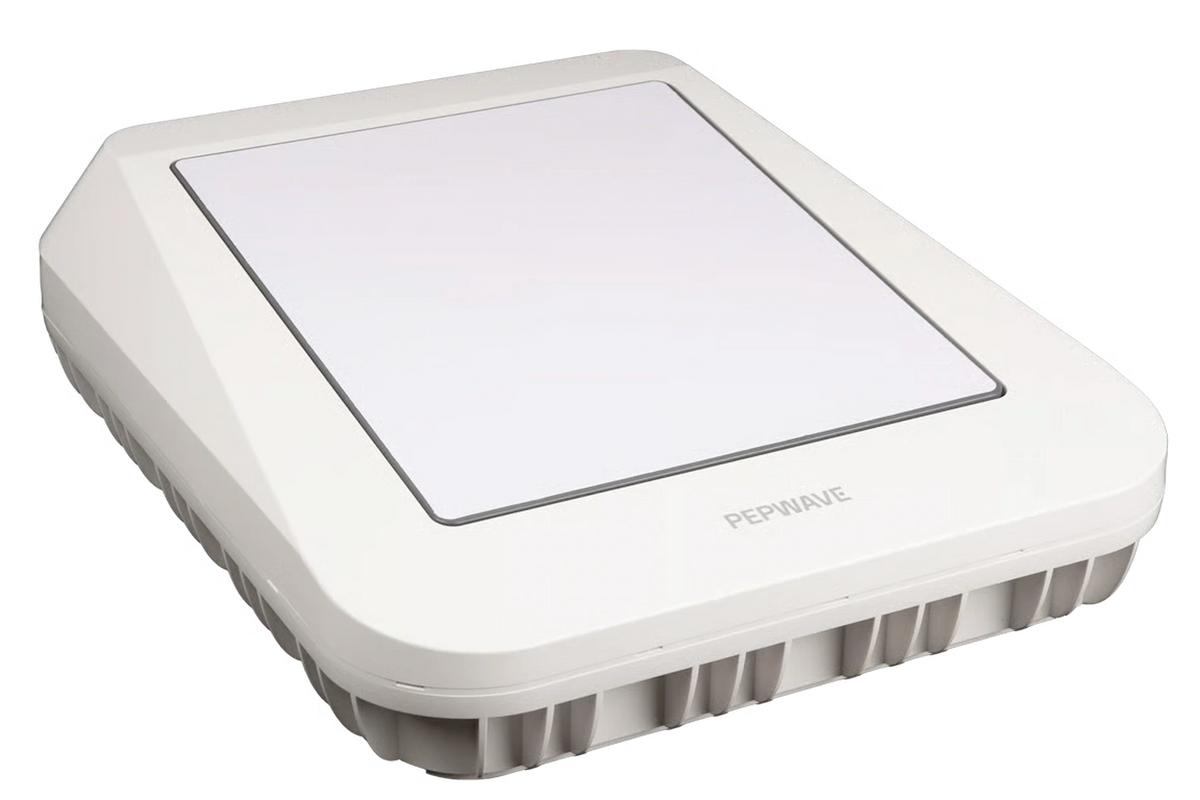

The Peplink Pepwave Antenna MAX S (ANT-MAX-S) is an all-in-one integrated outdoor enclosure designed to combine a Starlink Mini satellite terminal and a Peplink cellular router into a single streamlined deployment.
By housing both the satellite dish and router internally, the Antenna MAX S eliminates external RF coaxial cabling, effectively preventing RF signal degradation and ensuring maximum 5G and Wi-Fi throughput for mobile fleets, RVs, marine vessels, and remote field deployments.
Equipped with built-in 4x 5G/LTE antennas, 2x Wi-Fi antennas, and a high-precision GPS element, the enclosure works natively with Peplink SpeedFusion technology to enable seamless bonding or hot failover between satellite and cellular networks.
All-in-One Hybrid Satellite & Cellular Enclosure
- Integrated Antenna Array: Houses 4x high-gain 5G/LTE elements, 2x dual-band Wi-Fi elements, and 1x GPS element directly inside the unit.
- Direct Hardware Integration: Internal mounting slots hold a Starlink Mini dish along with compatible Peplink routers (BR1 Mini series, BR1 Pro series, or Transit Duo Pro).
- Zero External RF Cable Loss: Eliminates long antenna cable runs to preserve signal strength and maximize cellular and Wi-Fi performance.
- SpeedFusion Hybrid Bonding: Enables unbreakable connectivity by seamlessly bonding or failing over between Starlink satellite link and cellular 5G networks.
Rugged IP67 Construction & Power Flexibility
- Industrial Weatherproof Rating: Built with an aluminium heat-dissipating base plate and UV-stable PC top housing rated to IP67 water and dust ingress protection.
- Flexible Power Options: Accommodates internal DC or 802.3bt (90W) PoE splitter power setups to supply power to both the Peplink router and Starlink Mini.
- Multiple Mounting Solutions: Supports surface mounting, pole mounting (via included L-mount set), magnetic mounting, and deck mounting setups.
Technical Specifications & Package Contents
Technical Specifications of Peplink Antenna MAX S
| Feature | Specification |
|---|---|
| Product Model / Code | Peplink Antenna MAX S / ANT-MAX-S |
| Cellular Elements | 4x 5G/LTE Elements (617–6000 MHz, Peak Gain up to 8.9 dBi) |
| Wi-Fi Elements | 2x Wi-Fi Elements (2400–2500 MHz & 5000–6000 MHz, Peak Gain up to 7.4 dBi) |
| GPS Element | 1x Active GPS Element (1575–1602 MHz, LNA Gain 27±3dB) |
| Enclosure Protection | IP67 Waterproof & Dustproof, UL 94 V-0 Flammability, UL 746C UV Resistant |
| Materials | Aluminium Bottom Base Plate / UV-Stable Polycarbonate Enclosure |
| Supported Routers | Peplink BR1 Mini Series, BR1 Pro Series, Transit Duo Pro |
| Supported Satellite Terminal | Starlink Mini |
| Dimensions & Weight | 448 x 368 x 135 mm (17.6" x 14.5" x 5.3") |
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
What's included in the Package of the Peplink Antenna MAX S
- 1x Peplink Antenna MAX S Enclosure
- 1x L-Mount Set & Mounting Bracket Hardware
- 1x Power Supply / Splitter Mounting Set
- 1x Starlink Ethernet Cable (900 mm)
- 1x Starlink Power Cable (900 mm)
- 1x Ethernet Cable (200 mm) & 1x DC Cable (100 mm)
- 3x M25 Cable Glands, 2x RJ45 Glands & Sealing Caps/Plugs
- 1x Double-Sided 3M Adhesive Pad & Fixation Screw Kit
For complete technical documentation, download the Peplink Antenna MAX S Datasheet.
