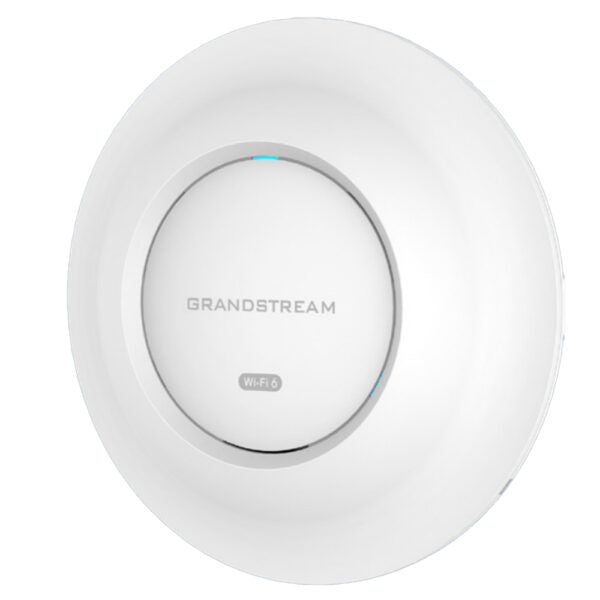

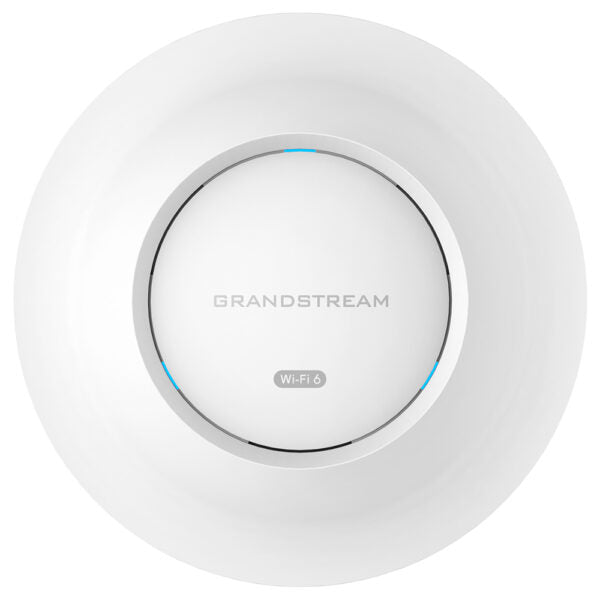

Grandstream GWN7664E Wi-Fi Access Point 4×4 802.11ax Wi-Fi 6 AP, AX6000, 2 x 2.5 Gbe Ports, HE160

The GWN7664E is a powerful, enterprise-grade high-performance 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers dual-band 4×4:4 MUMIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput of upto 6Gbps and expanded Wi-Fi coverage range. The GWN7664E is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7664E is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 512 concurrent clients and dual 2.5 Gigabit network ports with PoE+, the GWN7664E is an ideal Wi-Fi access point for business grade wireless network deployments with medium-to-high user density.

Features:

• 6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughout
• Advanced QoS to ensure real-time performance of low-latency applications
• Dual-band 4×4:4 MUMIMO with DL/UL OFDMA technology
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Up to 175-meter coverage range
• Self power adaptation upon auto detection of PoE+
• Support 512 concurrent Wi-Fi client devices
• Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Additional Information:

• Weight: 2.34 lb
• Dimensions: 10.16 × 9.72 × 3.39 in
• WiFi Standard: Wi-Fi 6 (802.11ax)
• Network Band: Dual Band
• Frequency Band: 2.4 Ghz, 5 Ghz
• Mounting Options: Ceiling, Wall Plate

Technical Specifications:

GENERAL INFO:

• Model: GWN7664E
• Antennas:
  • 8 individual internal antennas, 4 per band
  • 2.4GHz, gain 3.5dBi
  • 5 GHz, gain 4.5dBi

Wi-Fi Standards:

• IEEE 802.11 a/b/g/n/ac/ax

Wi-Fi Data Rates:

• 5G:
  • IEEE 802.11ax: 7.3 Mbps to 4804 Mbps
  • IEEE 802.11ac: 6.5 Mbps to 3467 Mbps
  • IEEE 802.11n: 6.5Mbps to 600Mbps
  • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 2.4G:
  • IEEE 802.11ax: 7.3 Mbps to 1147 Mbps
  • IEEE 802.11n: 6.5Mbps to 600Mbps
  • IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices,
radio interference in the operating environment and mix of devices in the network

Frequency Bands:

• 2.4GHz Radio: 2400 – 2483.5 MHz
• 5GHz Radio: 5150 – 5895 MHz

*Not all frequency bands can be used in all regions

Channel Bandwidth:

• 2.4G: 20 and 40 MHz
• 5G: 20, 40, 80 and 160 MHz

Wi-Fi and System Security:

• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/
  control lockdown via digital signatures, unique security certificate and random default password per device

MIMO:

• 4×4:4 2.4GHz
• 4×4:4 5GHz

Box Contents:

• GWN7664E 802.11ax Wireless AP, Mounting Kits, Quick Start Guide

For a full list of specifications, please refer to the Product Data Sheet.
