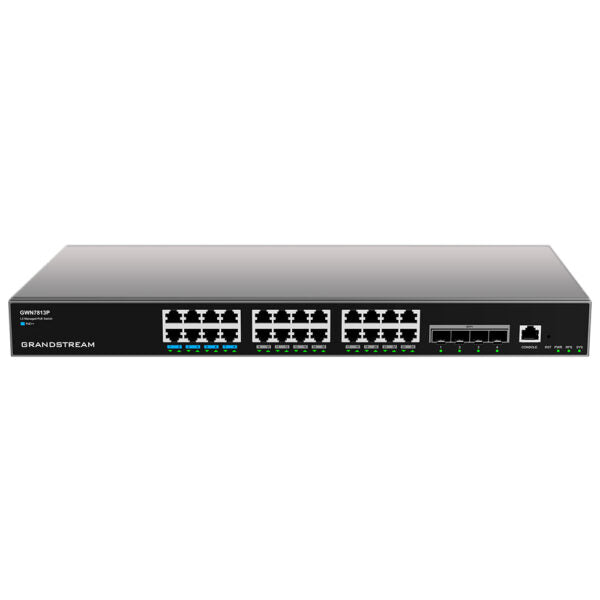

Grandstream GWN7813P Enterprise Layer 3 Managed PoE Network Switch, 24 x GigE, 4 x SFP+

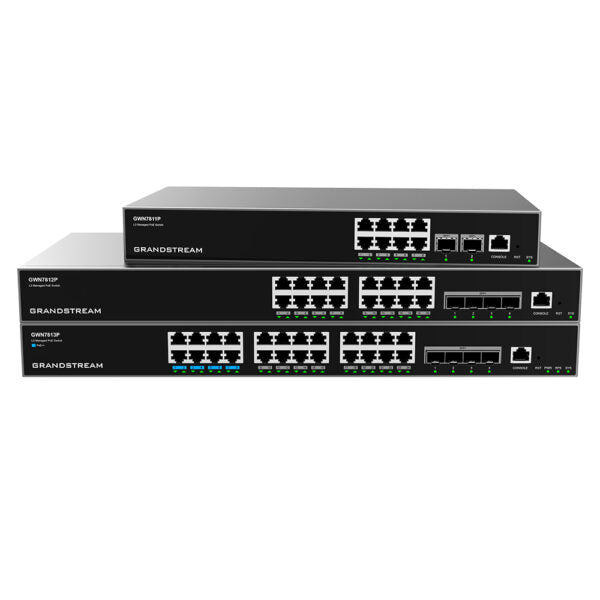

The GWN7810 series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. GWN7810 series can be managed in a number of ways, including the local Web user interface of the GWN7810 series switch and CLI, the command-line interface. The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. The GWN7810 series are the best value enterprise-grade managed network switches for medium-to-large businesses.

Features:

• 24 x Managed PoE Network Switch
• 4 x SFP+
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models,
  Ports 1-8 on the GWN7813P supports PoE++
• Supports deployment in IPv6 and IPv4 networks.
• ARP Inspection, IP Source Guard, DoS protection, port forwarding security & DHCP snooping.
• Embedded controller to manage switch; GWN. Cloud and GWN Manager,
  Grandstream’s cloud and on-premise network management platform
• Built-in QoS allows for prioritization of network traffic.

Additional Information:

• Weight: 11.68 lb
• Dimensions: 19.53 × 17.15 × 3.43 in
• Switch Type: Managed Switches, PoE Switches
• Number of Ports: 24-28
• Main Port Speed: Gigabit
• Uplink Ports: 10G SFP+
• Layer Support: L3
• PoE Suppor: Yes
• PoE Budget: High (≥200)
• Redundant Power Supply: Yes

Technical Specifications:

• Model: GWN7813P
• Box Contents:
  • 1x Switch
  • 1x 1.2m(10A) AC Cable
  • 1x 25cm Ground Cable
  • 4x Rubber Footpads
  • 1x Power Cord Anti-Trip
  • 8x Screws (KM 3*6)
  • 1x Quick Installation Guide
  • 1x Console Cable(Optional)
• Network Protocol:
  • IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z,
    IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p
• Gigabit Ethernet Ports: 24
• 10Gigabit SFP+ Ports: 4
• Console: 1
• Number of PoE Ports: 24
• Link Aggregation: 14
• External Redundant Power Supply (RPS): 54V(300W)
• Max Output Power per PoE Port: 60W(1-8,PoE++) 30W(9-24)
• Max Total PoE Output Power: 360W
• PoE Standards: IEEE 802.3af/at/bt
• Auxiliary Ports: 1x Reset Pinhole
• Forwarding Mode: Store-and-forward
• Total non-blocking throughput: 64Gbps
• Switching Capability: 128Gbps
• Forwarding Rate: 95.232Mpps
• Packet Buffer: 12MB
• Switching:
  • 16K static, dynamic and filtering MAC addresses
  • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
  • VLAN virtual interface
  • GVRP (pending)
  • Spanning tree, 32 instances for STP/RSTP/MSTP
• Routing:
  • Static routing
  • Dynamic routing, including RIP, RIPng, OSPF and OSPFv3
• Multicast:
  • IGMP Snooping
  • MLD Snooping

For a full list of specifications, please refer to the Product Data Sheet.
