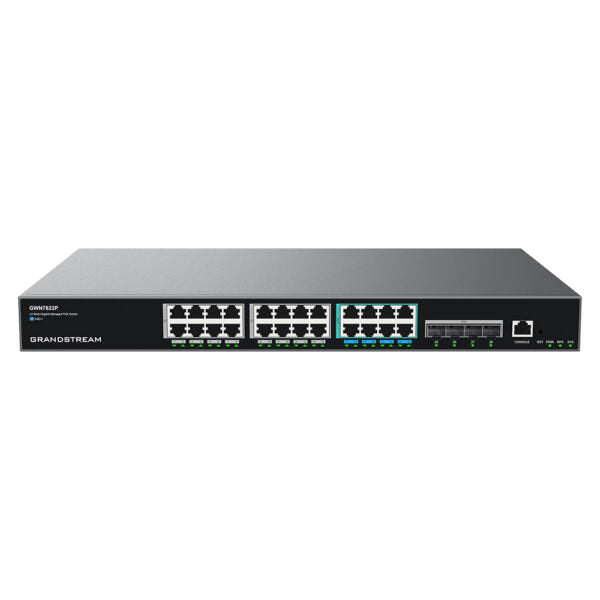

Grandstream GWN7822P Enterprise Layer 3 Managed Multi-Gigabit PoE Network Switch

The GWN7820 series are Layer 3 multi-gigabit managed PoE switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, comprehensive security capabilities against potential attacks, and provides smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. GWN7820 series can be managed in a number of ways, including the local Web user interface of the GWN7820 series switch and CLI, the command-line interface, and GWN router. The series is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service and flexible security settings, the GWN7820 series are the best value enterprise-grade managed PoE switches for medium-to-large businesses.

Features:

• 8 x 2.5 GigE PoE++
• 4 x 10G SFP+
• 16 x GigE PoE
• Smart power control to support dynamic PoE/PoE+ and PoE++
• Supports deployment in IPv6 and IPv4 networks
• Reliability features including fault detection, device protection, dual boot,
  dual system file redundancy, link aggregation, storm control, and more
• ACL filtering of data packets by configuring matching rules, processing operations and
  time schedule, and provides flexible security access control policies
• Management options include Embedded controller; GDMS Networking and GWN Manager, Grandstream’s free cloud
  and on-premises network management platform; CLI management; GWN router.
• Built-in QoS allows for prioritization of network traffic

Additional Information:

• Weight: 9.7 lb
• Dimensions: 21.93 × 16.26 × 5.43 in
• Switch Type: PoE Switches
• Number of Ports: 24-28
• Main Port Speed: 2.5G
• Uplink Ports: 10G SFP+
• Layer Support: L3
• PoE Suppor: Yes
• PoE Budget: High (≥200)

Technical Specifications:

GENERAL INFO:

• Package Contents:
  • 1x Switch
  • 1x 1.2m AC Cable
  • 1x 25cm Ground Cable
  • 4x Rubber Footpads
  • 1x Power Cord Anti-Trip
  • 2x Rack-Mounting Kits
  • 8x Screws (KM 3*6)
  • 1x Quick Installation Guide
• Network Protocols:
  • IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad,
    IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x
• Memory:
  • 256MB RAM 8MB Nor Flash, 128MB Nand Flash
• Jumbo Frame (Bytes):
  • 10240
• PoE Standards:
  • IEEE 802.3af/at/bt
• Gigabit Ports:
  • 16x 1G, 8x 2.5G
• Maximum Amount of Supported Modules:
  • SM-10G: 4
  • MM-10G: 4
  • RJ45-10G: 2
    (Note: RJ45-10G modules must be interval inserted)
• Link Aggregation Groups:
  • 14
• Integrated Power Supply:
  • 420W(54V/7.78A)
• External Redundant Power Supply (RPS):
  • 54V(300W)
• Maximum Output Power Per PoE Port:
  • 30W for port 1-16, 60W for port 17-24
• Max Total PoE Output Power:
  • 360W
• Surge Protection:
  • ± 6KV CM and DM for power
  • ± 4KV CM for network ports
• ESD:
  • ± 12KV for contact discharge
• Stacking:
  • Yes, up to 4 devices
• DHCP:
  • DHCP server, DHCP relay, Option 82, 60, 160 and 43
• Mounting:
  • Desktop, or Rackmount (rack-mounting kits included)
• Environmental:
  • Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing)
  • Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)
• Dimensions:
  • 440mm(L)x300mm(W)x44mm(H)
• Unit Weight:
  • 4.1Kg

For a full list of specifications, please refer to the Product Data Sheet.
