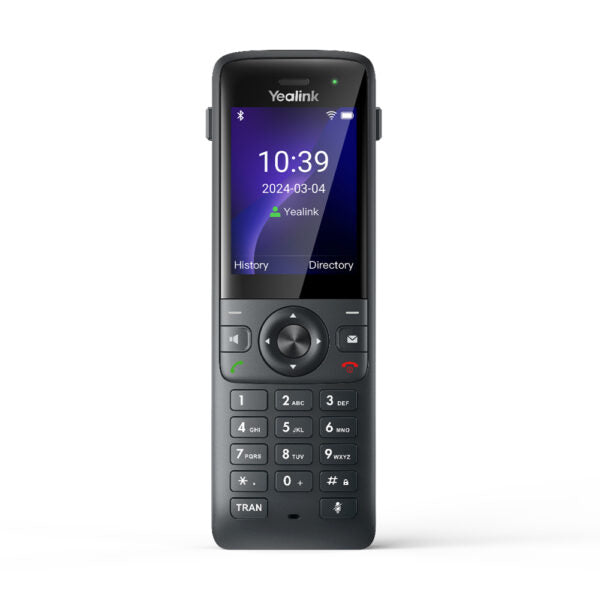

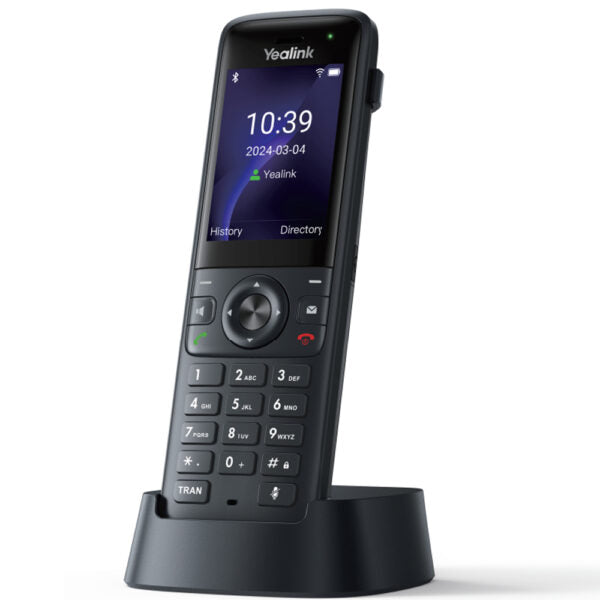

Yealink AX83H Handheld Wi-Fi IP Phone

AX83H is an enterprise portable Wi-Fi IP color screen phone that meets wireless communication needs. The AX83H supports registering up to four SIP accounts and features a 2.4-inch color display. It integrates Yealink’s Optima HD Audio and Smart Noise cancellation technology to deliver exceptional audio quality and clear voice communication. It is equipped with a built-in Bluetooth 5.0 module and a dual-band 2.4G/5G Wi-Fi 6 module, combined with advanced seamless roaming technology, allowing you to stay ahead in the ever-evolving wireless era. In addition, AX83H is equipped with a 2000mAh battery, with a talk time of 9 hours and a standby time of 200 hours. It is widely used in various wireless scenarios such as SMEs, offices, warehouses, supermarkets, and hotels.

Features:

• Wi-Fi 6
• Roaming
• HD Audio
• Smart Noise Cancellation
• Bluetooth 5.0
• Quick Charge
• Vibration
• 3.5mm Headset Jack
• Belt Clip
• Type-C

Additional Information:

• Weight: 0.81 lb
• Dimensions: 7.13 × 4.09 × 3.54 in
• Phone Type: DECT, WiFi / WiFi Capable

Technical Specifications:

GENERAL INFO:

• Model: AX83H Wi-Fi Phone
• Part number: 1301013
• UPC Code: 841885123893
• EAN Code: 6938818320048
• Package Contents:
  • Yealink AX83H Phones
  • Charger Cradle
  • Rechargeable Battery
  • Belt Clip
  • Quick Start Guide
  • Power Adapter
• Audio Features:
  • Optimal HD audio:
    • HD handset
    • HD speaker
  • Hearing aid compatible (HAC) compliant
  • Audio codec:
    • G.722, PCMU (G.711μ), PCMA (G.711A), G.729,
      G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC
  • DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
  • Full-duplex hands-free speakerphone with AEC
  • Smart Noise Cancellation Technology
  • VAD, CNG, AEC, PLC, AJB, AGC
• Display and Indicator:
  • 2.4″ 240×320 TFT color screen
  • Keypad backlight
  • Vibration
  • Wallpaper and screensaver
  • LED for call and message waiting indication
  • Multilingual user interface
  • Caller ID with name, number, and avatar
• Phone Features:
  • 4 VoIP accounts
  • Speed dial, redial
  • Call hold/call transfer/call waiting/call forward
  • Emergency call
  • Mute, DND
  • Auto answer
  • Hotline
  • Recall
  • Local 5-way conferencing
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Set date time manually or automatically
  • Dial Plan, XML Browser, Action URL/URI
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
  • Customizable softkey
• Peripherals:
  • Support Bluetooth headset
    • Basic functions: answer/end/mute call
    • Enhanced functions: redial/call hold/
      volume adjustment two-way synchronization
• IP-PBX Features:
  • Anonymous call, anonymous call rejection
  • Intercom
  • Multicast paging
  • Call completion
  • Message Waiting Indicator (MWI)
  • Call Park, call pickup
  • Call recording
  • Voice mail
• Feature Keys:
  • 2 soft keys
  • 7 function keys: dial, hang up, handsfree,
    voice message, mute, call transfer
  • Navigation key and OK key
• Interface
  • 1 x 3.5 mm headset jack
  • 1 x Type-C port
• Network:
  • Built-in dual-band Wi-Fi:
    • Network standard: 2.4G&5G
      IEEE802.11a/b/g/n/ac/ax
    • Frequency range: 2.4 GHz/ 5.0 GHz
    • Roaming: IEEE802.11 k/r/v
  • Built-in Bluetooth 5.0:
    • Connecting to Bluetooth Headset
  • IPv4/IPv6
  • SIP v1 (RFC2543), v2 (RFC3261)
  • Call server redundancy supported
  • NAT traversal:
    • STUN mode
  • SIP link mode:
    • Proxy mode and peer-to-peer
  • IP Assignment:
    • static/DHCP
  • HTTP/HTTPS web server
  • Time and date synchronization using SNTP
  • UDP/TCP/DNS-SRV (RFC 3263)
  • QoS:
    • Layer 3 ToS DSCP, 802.11e/WMM
• Power:
  • Power adapter:
    • AC 100~240V input and DC 5V/1.2A output

For a full list of specifications, please refer to the Product Data Sheet.
