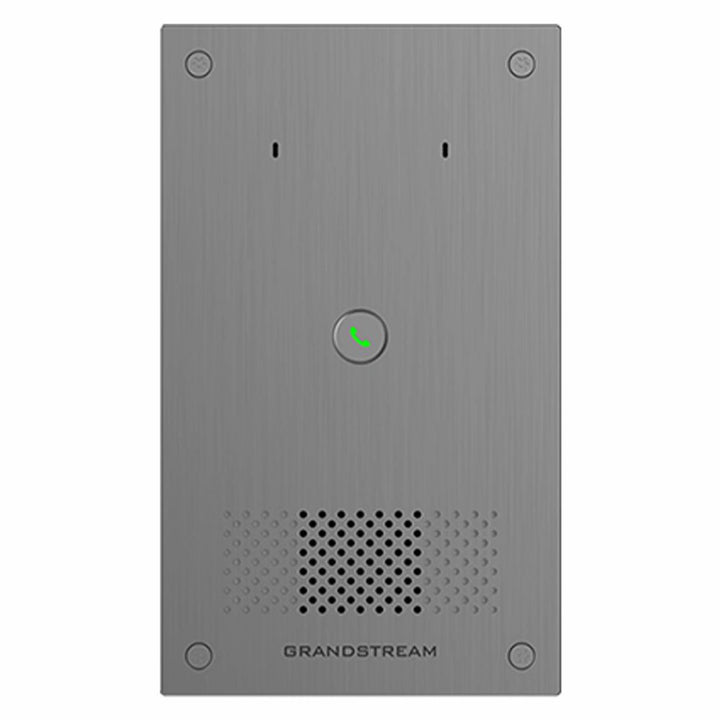

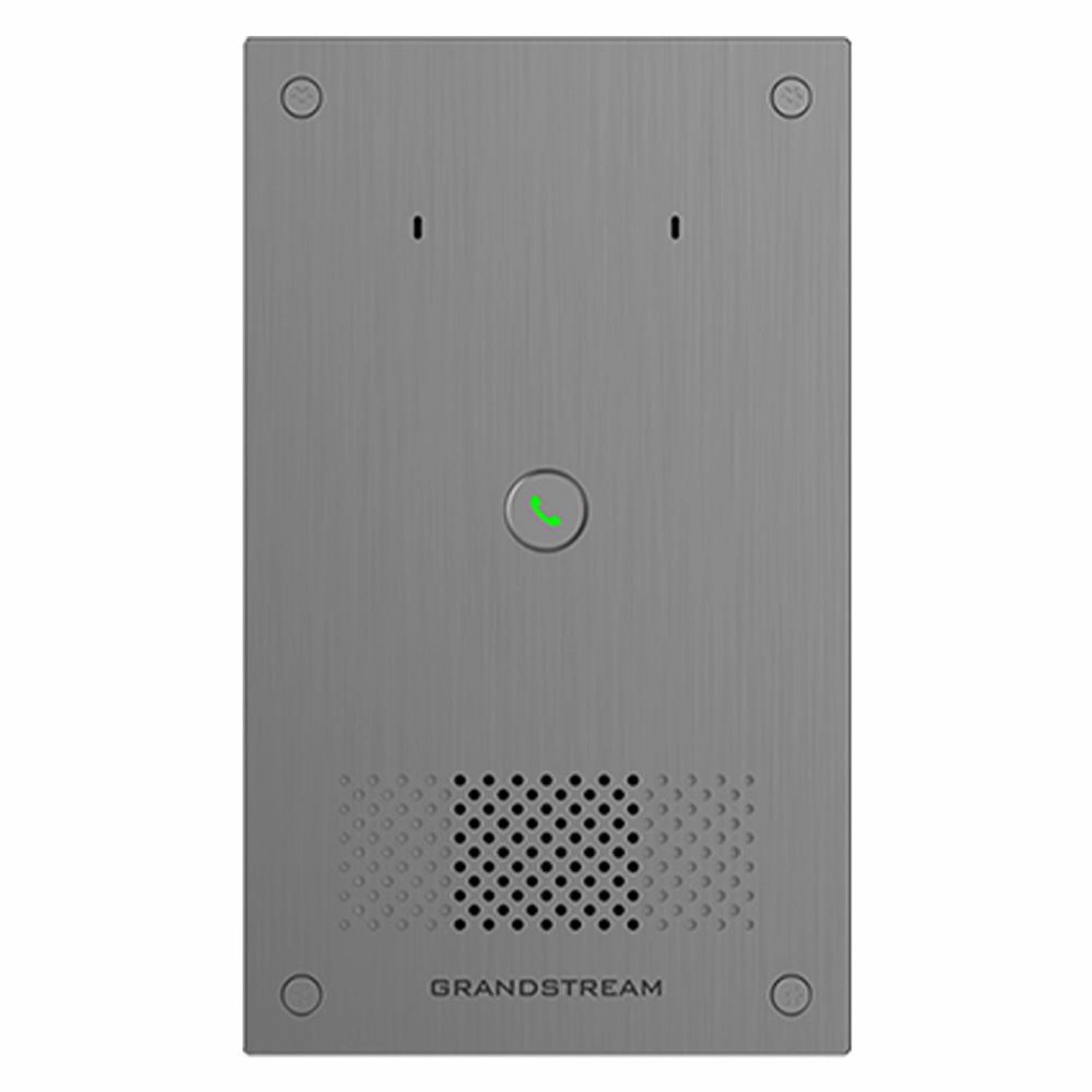

Grandstream GSC3560 Outdoor Audio Intercom
The Grandstream GSC3560 is an enterprise-grade Smart Outdoor Audio Intercom designed to provide robust two-way voice communication, access control, and security monitoring for demanding environments. Engineered for schools, residential communities, industrial facilities, and high-security zones, the GSC3560 combines a sleek, modern aesthetic with industrial-grade durability to deliver reliable emergency response and door access control.
Built with a heavy-duty metal housing, the entire unit is IP66 weatherproof and IK10 vandal-resistant rated. High-fidelity audio is powered by a dual-microphone array with a 6-meter pickup range and a powerful 10W speaker delivering up to 100 dB output for broadcast announcements, backed by AI-powered noise suppression. Featuring a solid-state relay (SSR) for anti-magnetic tamper protection, versatile I/O interfaces, and support for SIP, HTTP API, and mobile app unlocking, it integrates into any unified security network.
High-Performance Audio Security & Noise Suppression
- High-Power Audio System: Integrated dual microphones provide up to 6 meters (19.68 ft) voice pickup, paired with a high-power 10-watt speaker capable of 90 dB for intercom and 100 dB for broadcast announcements.
- AI Noise Suppression: Advanced AI-powered noise cancellation filters out ambient background noise to ensure crystal-clear voice communication in loud environments.
- Inclusive Communication Support: Equipped with line-out connectivity to integrate external speakers or induction loops for inclusive accessibility.
Rugged Hardware & Flexible Integration
- IP66 & IK10 Vandal Proofing: Full metal casing with certified IP66 weather resistance and IK10 impact resistance across the whole body and button area to operate reliably between -40°C and 70°C.
- Multiple Door Unlock Methods: Supports unlocking via SIP call, HTTP API, and the Grandstream SecureAccess mobile app.
- Anti-Magnetic Solid State Relay (SSR): Includes 2-channel relay outputs (including NO2/COM2/NC2 anti-magnetic SSR) to protect high-security lock connections against external magnetic tampering.
- Comprehensive I/O Terminals: Equipped with 2x Alarm Inputs, Line-Out audio port, RS-485, and a MicroSD card slot (up to 256 GB) for local audio logging.
- Cloud & Smart System Support: Centrally manage endpoints via local Web UI, GDMS Cloud / GDMS SecureAccess, or integrate with Home Assistant platforms.
Technical Specifications of Grandstream GSC3560 Smart Outdoor Audio Intercom:
| Feature | Specification |
|---|---|
| Audio Hardware | Dual-mic array (6m / 19.68ft pickup) + 10W speaker (100 dB broadcast) |
| Noise Cancellation | AI-powered noise suppression + classic noise suppression |
| Unlock Methods | SIP Call, HTTP API, Grandstream SecureAccess App |
| Network & PoE Ports | 1× 10/100 Mbps RJ45 Port with IEEE 802.3at PoE+ (Class 4) |
| I/O & Relay Interfaces | 2x Alarm Inputs, 2x Relay Outputs (1x Anti-Magnetic SSR), 1x Line-Out, 1x RS-485 |
| Local Storage | 1x MicroSD / TF Card Slot (Supports up to 256 GB) |
| Protection Rating & Temp | IP66 Weatherproof, IK10 Vandal-Proof (-40°C to 70°C Operating Temp) |
| Power Options | IEEE 802.3at PoE+ or 12–48 V DC / 2A (24W) Terminal |
| Installation Methods | Wall Mount, Pole Mount, Flush Mount |
What's included in the package of Grandstream GSC3560 Outdoor Intercom:
- Grandstream GSC3560 Smart Outdoor Intercom
- Ground Wire
- Installation Screws & Accessories (Expansion Bolts, Tapping Screws, Machine Screws, Screwdriver, Silicone Plug)
- Wall Mounting Position Sticker
- Quick Installation Guide
For a full list of specifications, please refer to the Grandstream GSC3560 Smart Outdoor Audio Intercom Datasheet.
