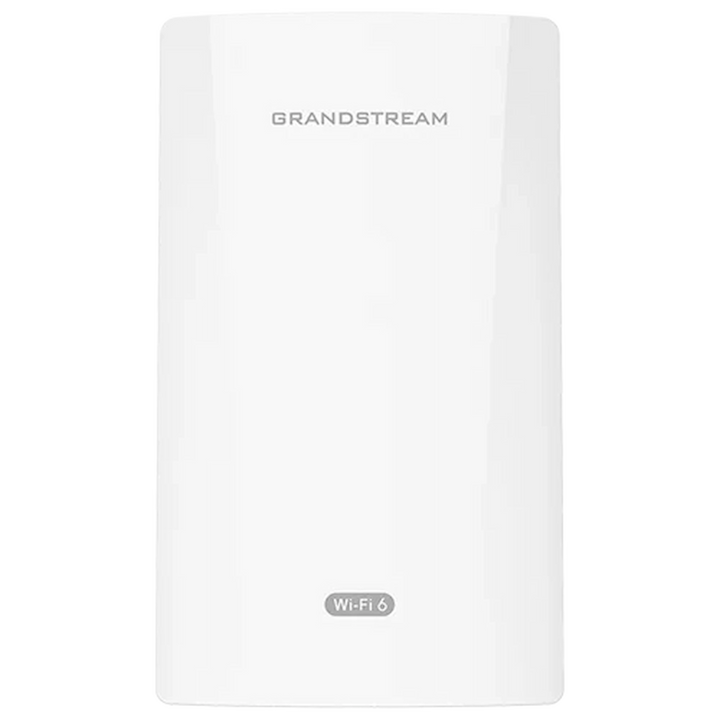

Grandstream GWN7302 Outdoor PtP/PtMP Fixed Wireless Bridge | 5GHz Wi-Fi 6, 5km Range, IP66
The Grandstream GWN7302 is an enterprise-grade 5GHz Point-to-Point (PtP) and Point-to-Multipoint (PtMP) fixed wireless bridge designed for long-distance, high-speed outdoor data transmission. Built for factories, construction sites, parking lots, gatehouses, and multi-building campuses, the GWN7302 provides a reliable wireless backhaul alternative to expensive, labor-intensive trenching or fiber runs.
Engineered with 5GHz 2×2:2 MIMO Wi-Fi 6 (802.11ax) technology and TDMA spectrum efficiency protocols, the GWN7302 delivers up to 2.4 Gbps aggregate wireless throughput over links reaching up to 5 kilometers. Housed in an IP66-rated weatherproof enclosure, it features two high-gain 13.5 dBi internal directional antennas and dual Gigabit Ethernet ports with PoE pass-through support.
High-Performance Wireless Architecture
- Wi-Fi 6 Speed & TDMA Efficiency: Supports 802.11ax speeds up to 2402 Mbps on 5GHz (20/40/80/160MHz channels) with TDMA technology to minimize interference and optimize spectrum utilization in crowded environments
- 5km Coverage Range: High-power 26dBm transmitter paired with integrated 13.5 dBi directional antennas delivers long-distance line-of-sight connectivity up to 5 km.
- Flexibility for PtP & PtMP Links: Operates in Point-to-Point mode (1-to-1) or Point-to-Multipoint mode (1-to-4) to connect multiple remote endpoints or security camera poles back to a central network hub.
Streamlined Hardware & Installation
- Dual Gigabit Ports with PoE Output: Features 1× 10/100/1000M PoE Input port (802.3af/at or 24V DC) and 1× 10/100/1000M PoE Output port (up to 13W PSE output on PoE+ input) to power secondary IP cameras or access points directly.
- Quick Alignment & One-Key Pairing: Built-in signal strength LED indicators guide physical antenna alignment during setup, complemented by hardware one-key pairing for seamless sync.
- IP66 Weatherproof Rating: Industrial-grade housing operates reliably in extreme conditions ranging from -30°C to 60°C.
- Versatile Cloud & App Management: Features an embedded controller-less web UI, as well as full remote provisioning and management via the GWN App and GDMS Cloud platform.
Technical Specifications
| Feature | Specification |
|---|---|
| Wi-Fi Standard | 802.11a/n/ac/ax (5GHz Wi-Fi 6) |
| Wireless Throughput | Up to 2.4 Gbps Aggregate |
| Max Transmission Distance | Up to 5 Kilometers (3.1 Miles) |
| Antenna Gain & Beamwidth | 2× Internal 5GHz Antennas (13.5 dBi Gain, 30° H / 30° V) |
| Operation Modes | Point-to-Point (PtP) & Point-to-Multipoint (PtMP up to 1:4) |
| Ethernet Ports | 1× Gigabit PoE IN (802.3af/at) + 1× Gigabit PoE OUT (PSE) |
| Weatherproof Rating | IP66 Certified (-30°C to 60°C Operating Temp) |
| Power Options | PoE Input (802.3af/at) or +24V DC Input |
What's included in the package of Grandstream GWN7302 Wireless Bridge:
- Grandstream GWN7302 PtP/PtMP Fixed Wireless Bridge
- Wall and Pole Mounting Kits
- Quick Start Guide
For a full list of specifications, please refer to the Grandstream GWN7302 Datasheet.
